| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

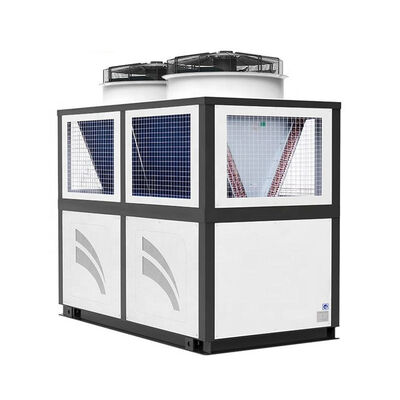

Leomon’s water-source heat pumps are premium solutions for district heating networks and industrial process heating (with temperatures reaching up to 90°C).
Applications
* Industrial process heating
* District heating networks
* Inlet temperatures up to 29°C
Design
* Ultra-low GWP (Global Warming Potential) R1234ze refrigerant
* Screw compressors designed for continuous, heavy-duty, high-temperature operation
* Cooling system with internal circuitry
* Robust shell-and-tube heat exchangers
Output Range
* Heating capacity ranging from 410 kW to 735 kW
Our high-temperature heat pumps are suitable for domestic hot water and space heating applications. They also serve specialized industries—such as food processing, electric forging, spray coating, packaging and printing, chemicals, and slaughtering—that require hot water at temperatures exceeding 55°C.
Advantages
1. Compressors
Our large-scale heat pumps utilize US-made Copeland scroll compressors, while smaller models use compressors; both are specifically designed for heat pump applications and offer high operational efficiency.
2. Electrical Control System
The control system enables easy management of circulation pumps, water make-up, water supply, auxiliary electric heating, and PID-based automatic defrosting. Users can configure parameters to meet specific project requirements and achieve full system automation.
3. Shell-and-Tube Heat Exchanger
The heat pumps feature high-efficiency shell-and-tube heat exchangers with a heat transfer area 3.7 times that of bare-tube designs. Their unique configuration and compact spiral structure ensure optimal refrigerant heat exchange.
4. Electronic Expansion Valve
We utilize Sanhua expansion valves combined with our proprietary control system to implement a specialized electronic expansion controller. This system employs digital technology to adjust refrigerant flow based on temperature factors, ensuring optimal flow rates and achieving a higher Coefficient of Performance (COP).
Specifications
| type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
10kW | 18kW | 35kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.8kW |
| Heating capacity under A2 working condition(7) |
9.5kW | 17kW | 34kW |
| Heating consumption power under A2 working condition |
5kW | 8.9kW | 17.9kW |
| Heating capacity under A3 working condition(-12) |
9.5kW | 17kW | 32kW |
| Heating consumption power under A3 working condition |
6.2kW | 10.6kW | 20.6kW |
| Heating capacity under A4working condition(-20) |
8kW | 16kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW | 11.1kW | 20.1kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 1.7m³/h | 3.1m³/h | 6m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples)) |
DN32(hexagon nipples)) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 215 | 415 |
Get Further Assistance
Leomon offers high-quality ODM and OEM services, providing customized solutions tailored to your needs. Contact us today for more information.
|
|
