| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

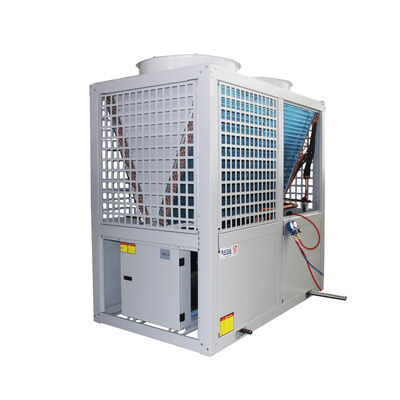

Leomon's high-temperature air source heat pumps are designed specifically for commercial and industrial hot water supply, capable of delivering outlet water temperatures up to 85°C.
Our high-temperature heat pumps are suitable for residential hot water and space heating, as well as specialized industries requiring hot water above 55°C—such as food processing, electric forging, spray coating, packaging and printing, chemical manufacturing, and slaughtering.
Features
1. EVI Compressor Technology: Utilizes Copeland EVI compressors for efficient operation across various conditions.
2. Multi-Power Compatibility: Supports both 220V–240V single-phase and 380V–415V three-phase power supplies.
3. Comprehensive Safety Protection: Includes safeguards for temperature, timing, water flow, anti-freezing, current, and pressure.
4. Flexible Customization: Offers options for full customization, small-batch customization, and production based on specific designs or samples.
5. Wide Application Range: Suitable for villas, hotels, factories, hospitals, and student dormitories.
6. Quality Certifications: Holds CE, ISO9001, CCC, CB, RoHS, SASO, and SGS certifications.
7. High Energy Efficiency: Achieves an energy efficiency ratio (COP) of 2.52–2.56, saving approximately 70% in energy compared to traditional heaters.
8. High Outlet Temperature: Capable of reaching 80°C outlet water temperature when ambient air temperatures range from 5°C to 45°C.
Advantages
1. Compressors
Our large-scale heat pumps utilize US-made Copeland scroll compressors, while smaller models use compressors; both are specifically designed for heat pump applications to ensure high operational efficiency.
2. Electrical Control System
The control system manages circulation pumps, water make-up, water supply, auxiliary electric heating, and PID-based automatic defrosting. Users can configure parameters to meet specific project requirements and achieve full system automation.
3. Shell-and-Tube Heat Exchanger
The heat pump employs a high-efficiency shell-and-tube heat exchanger with a heat transfer surface area 3.7 times that of bare-tube designs; its unique configuration and compact spiral structure ensure optimal heat exchange for the refrigerant.
4. Electronic Expansion Valve
We utilize Sanhua expansion valves in conjunction with our proprietary control system to develop a specialized electronic expansion controller. This system employs digital technology to adjust refrigerant flow based on temperature factors, ensuring optimal flow rates and achieving a higher Coefficient of Performance (COP).
Specifications
| type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
10kW | 18kW | 35kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.8kW |
| Heating capacity under A2 working condition(7) |
9.5kW | 17kW | 34kW |
| Heating consumption power under A2 working condition |
5kW | 8.9kW | 17.9kW |
| Heating capacity under A3 working condition(-12) |
9.5kW | 17kW | 32kW |
| Heating consumption power under A3 working condition |
6.2kW | 10.6kW | 20.6kW |
| Heating capacity under A4working condition(-20) |
8kW | 16kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW | 11.1kW | 20.1kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 1.7m³/h | 3.1m³/h | 6m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples)) |
DN32(hexagon nipples)) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 215 | 415 |
Need Further Assistance
Leomon offers high-quality ODM and OEM services, providing solutions tailored to your specific requirements. Contact us today to learn more.
|
|
