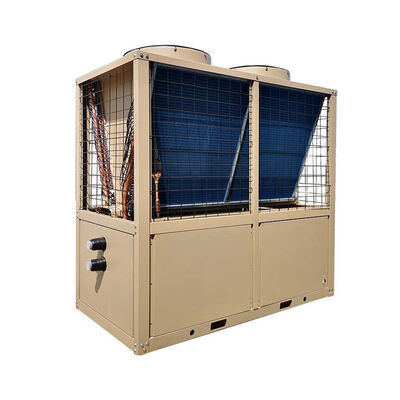

Utilizing dual-stage cascade compression technology and multi-stage refrigerant heat exchange, the unit reduces the operating compression ratio, significantly enhancing low-temperature performance and efficiency. It innovatively achieves an outlet water temperature of 90°C even at an ambient temperature of -35°C, serving as a replacement for heating boilers in extremely cold regions.
This 90°C high-temperature heat pump integrates seamlessly with your existing piping and radiators, allowing you to enjoy the energy-saving benefits of heat pump technology without replacing the entire system. It is also suitable for applications such as thermal oil storage projects, dairy plants, beverage factories, breweries, commercial kitchen disinfection, and the textile printing and dyeing industry. It represents the most energy-efficient and cost-effective method for hot water heating.
Features:
1. Safety First: Water and electrical components are separated to ensure safety.
2. Instant Hot Water: Provides hot water at temperatures up to 90°C on demand.
3. Advanced Refrigerant Technology: Uses a patented mixed refrigerant suitable for high-temperature, high-pressure systems.
4. User-Friendly Interface: Features an intelligent microprocessor and touchscreen display for easy operation and troubleshooting.
5. Premium Components: Utilizes world-renowned brands for compressors, valves, motors, and heat exchangers, ensuring high efficiency and energy savings of up to 75%.
6. Comprehensive Protection: Equipped with safeguards against high pressure, low pressure, overheating, and more.
7. All-Weather Operation: Maintains stable performance regardless of external conditions.
8. Material Options: Available with metal or stainless steel casings.
9. Automatic Defrosting: Ensures optimal operation under various conditions.
Advantages
1. Compressor
Our large-scale heat pumps utilize US-made Copeland scroll compressors, while smaller models use compressors; both are specifically designed for heat pump applications and offer high operating efficiency.
2. Electrical Control System
The control system manages circulation pumps, water make-up, water supply, auxiliary electric heating, and PID-based automatic defrosting. Users can configure parameters to meet specific project requirements and achieve full system automation.
3. Shell-and-Tube Heat Exchanger
The heat pump utilizes a high-efficiency shell-and-tube heat exchanger with a heat transfer surface area 3.7 times that of bare-tube designs; its unique configuration and compact spiral structure ensure optimal heat exchange for the refrigerant.
4. Electronic Expansion Valve
We employ Sanhua expansion valves integrated with our proprietary control system to create a specialized electronic expansion control unit. This system uses digital technology to adjust refrigerant flow based on temperature, ensuring optimal flow rates and achieving a higher COP.
Specifications
| type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
10kW | 18kW | 35kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.8kW |
| Heating capacity under A2 working condition(7) |
9.5kW | 17kW | 34kW |
| Heating consumption power under A2 working condition |
5kW | 8.9kW | 17.9kW |
| Heating capacity under A3 working condition(-12) |
9.5kW | 17kW | 32kW |
| Heating consumption power under A3 working condition |
6.2kW | 10.6kW | 20.6kW |
| Heating capacity under A4working condition(-20) |
8kW | 16kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW | 11.1kW | 20.1kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 1.7m³/h | 3.1m³/h | 6m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples)) |
DN32(hexagon nipples)) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 215 | 415 |
Need Further Assistance
Leomon offers high-quality ODM and OEM services, providing solutions customized to your specific requirements. Contact us today for more information.
|
|
