| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

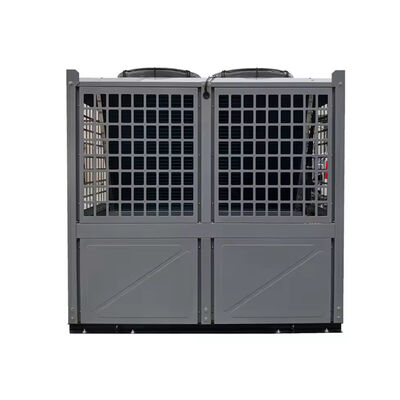

The Leomon 150°C ultra-high temperature water-source heat pump is designed to convert low-grade waste heat into high-value, high-temperature energy. It can supply hot water or steam at temperatures ranging from 100°C to 150°C, with steam temperatures boostable to 180°C via pressurization technology. Suitable for industries such as battery manufacturing, food processing, brewing, and Traditional Chinese Medicine (TCM), the unit supports flexible installation options, including placement in equipment rooms, on rooftops, or outdoors.
Features and Advantages
1. Flexible Thermal Energy Output
The unit generates high-temperature hot water or steam (100–150°C) on the user side. It can be configured to produce either hot water or steam based on specific customer requirements, offering flexible and convenient application.
2. Ultra-High Temperature Vapor-Compression Heat Pump System
The unit utilizes proprietary ultra-high temperature vapor-compression heat pump technology developed by Shenling, significantly boosting output temperatures. Outlet temperatures for hot water or steam can reach 100–150°C. Additionally, steam pressurization technology allows for steam temperatures of up to 180°C.
3. High Efficiency and Energy Savings
The unit incorporates core energy-saving technologies developed by the Shenling R&D Center and the National Post-Doctoral Research Station. Through optimized system design and enhanced heat exchange performance, it converts various grades of low-grade waste heat into high-grade thermal energy. With a Coefficient of Performance (COP) ranging from 2.0 to 4.0 W/W—far exceeding that of electric or gas boilers—the unit delivers significant energy savings.
4. Wide Application Range
The unit accommodates waste heat source inlet temperatures ranging from 60°C to 110°C, offering a broad operating range and strong adaptability to diverse waste heat environments.
5. Integrated Design
The unit features an integrated design that incorporates a built-in steam generator and feedwater pump. It supports a wide operating range (inlet temperatures of 60–110°C on the waste heat recovery side) and adapts well to various waste heat environments. During operation, only the inlet and outlet pipes for the heat source water, the steam pipeline, and the feedwater pipeline need to be connected. The unit features a compact design and offers flexible installation and usage, significantly saving installation space.
6. High-Efficiency Oil Cooling Technology
The unit employs high-efficiency oil cooling technology to cool the lubricating oil, ensuring stable and reliable compressor operation while minimizing thermal energy loss, thereby achieving safety, reliability, and superior efficiency.
Applications:
It is suitable for sectors such as battery manufacturing, food processing, breweries, and Traditional Chinese Medicine (TCM) production. More broadly, it is applicable to industrial, commercial, and residential projects requiring high-temperature hot water or steam.
Specifications
| Stacked air source high-temperature steam heat pump(150℃ steam) | ||||||
| Model | FKH-18II/TGW | FKH-45II/TGW | FKH-651I/TGW | FKH-90Il/TGW | FKH-130II/TGW | FKH-250Il/TGW |
| Generate steam quantity | 30kg | 80kg | 100kg | 160kg | 200kg | 360kg |
| Power Specifications | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
| A1 heating capacity(20℃) | 20KW | 45KW | 65KW | 90KW | 130KW | 250KW |
| A1 Heating consumption power |
12KW | 28KW | 40.5KW | 56KW | 81KW | 165KW |
| Maximum operating current | 30A | 70A | 120A | 150A | 200A | 400A |
| Noise | ≤72dB(A) | ≤72dB(A) | ≤75dB(A) | ≤80dB(A) | ≤80dB(A) | ≤86dB(A) |
| Unit size(length x width x height mm) |
1600×780×2000 | 2100×780×2000 | 3260×1030×2400 | 3260×1230×2400 | 3260×1230×2400 | 4000×2260×2600 |
| Steam connection size | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 |
| Size of water replenishment connection pipe |
DN20 | DN20 | DN20 | DN20 | DN20 | DN20 |
| Unit weight(kg) | 240 | 580 | 1180 | 1430 | 2100 | 5000 |
| Price( usd) | 6176 | 12500 | 16470 | 22058 | 30882 | 63235 |
Get Further Assistance
Leomon offers high-quality ODM and OEM services, providing solutions customized to your specific needs. Contact us today for more information.
|
|
