| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

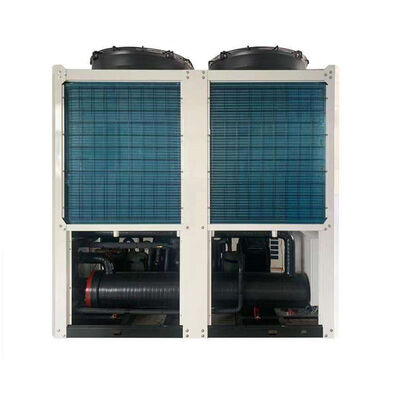

The Leomon 150°C ultra-high-temperature water-source heat pump is designed to convert low-grade waste heat into high-value, high-temperature energy. Product specifications indicate that the unit can supply hot water or steam at temperatures ranging from 100°C to 150°C, with steam temperatures capable of reaching 180°C through steam boosting technology. Suitable for industries such as battery manufacturing, food processing, brewing, and Traditional Chinese Medicine (TCM), the unit supports flexible installation options, including placement in equipment rooms, on rooftops, or outdoors.
Features and Advantages
1. Flexible Thermal Energy Output
The unit generates high-temperature hot water or steam (100–150°C) on the user side. It can be configured to produce either hot water or steam based on specific customer requirements, offering flexible and convenient application.
2. Ultra-High-Temperature Steam Compression Heat Pump System
The unit utilizes proprietary ultra-high-temperature steam compression heat pump technology developed by Shenling, significantly boosting the output temperature. Outlet temperatures for hot water or steam can reach 100–150°C. Additionally, steam boosting technology allows the steam temperature to reach a maximum of 180°C.
3. High Efficiency and Energy Savings
The unit incorporates core energy-saving technologies developed by Shenling’s R&D center and its national postdoctoral research station. By optimizing system design and enhancing heat exchange performance, it converts various grades of low-grade waste heat into high-grade thermal energy. With a Coefficient of Performance (COP) ranging from 2.0 to 4.0 W/W—far exceeding that of electric or gas boilers—the unit delivers significant energy-saving benefits.
4. Wide Application Range
The unit accommodates inlet temperatures of 60–110°C on the waste heat recovery side, offering a broad operating range and strong adaptability to various waste heat environments.
5. Integrated Design
The unit features an integrated design that incorporates a built-in steam generator and feedwater pump. It supports a wide operating range, with waste heat recovery inlet temperatures of 60–110°C, ensuring strong adaptability to diverse waste heat environments. Operation requires only the connection of the heat source water inlet and outlet pipes, steam piping, and feedwater piping. The unit features a compact design and offers flexible installation and usage, significantly saving installation space.
6. High-Efficiency Oil Cooling Technology
The unit employs high-efficiency oil cooling technology to cool the lubricating oil, ensuring stable and reliable compressor operation while minimizing thermal energy loss, thereby achieving safety, reliability, and superior efficiency.
Applications:
It is suitable for sectors such as battery manufacturing, food processing, breweries, and Traditional Chinese Medicine (TCM) production. More broadly, it is applicable to industrial, commercial, and residential projects requiring high-temperature hot water or steam.
Specifications
| Stacked air source high-temperature steam heat pump(150℃ steam) | ||||||
| Model | FKH-18II/TGW | FKH-45II/TGW | FKH-651I/TGW | FKH-90Il/TGW | FKH-130II/TGW | FKH-250Il/TGW |
| Generate steam quantity | 30kg | 80kg | 100kg | 160kg | 200kg | 360kg |
| Power Specifications | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
| A1 heating capacity(20℃) | 20KW | 45KW | 65KW | 90KW | 130KW | 250KW |
| A1 Heating consumption power |
12KW | 28KW | 40.5KW | 56KW | 81KW | 165KW |
| Maximum operating current | 30A | 70A | 120A | 150A | 200A | 400A |
| Noise | ≤72dB(A) | ≤72dB(A) | ≤75dB(A) | ≤80dB(A) | ≤80dB(A) | ≤86dB(A) |
| Unit size(length x width x height mm) |
1600×780×2000 | 2100×780×2000 | 3260×1030×2400 | 3260×1230×2400 | 3260×1230×2400 | 4000×2260×2600 |
| Steam connection size | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 |
| Size of water replenishment connection pipe |
DN20 | DN20 | DN20 | DN20 | DN20 | DN20 |
| Unit weight(kg) | 240 | 580 | 1180 | 1430 | 2100 | 5000 |
| Price( usd) | 6176 | 12500 | 16470 | 22058 | 30882 | 63235 |
Get Further Assistance
Leomon offers high-quality ODM and OEM services, providing customized solutions tailored to your specific needs. Contact us today for more information.
|
|
