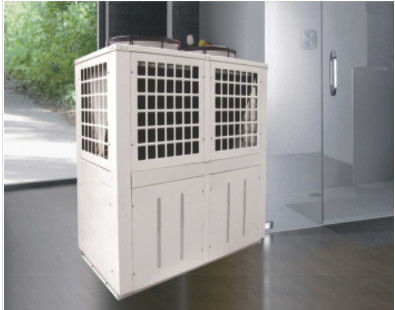

Multifunction Air Source Heat Pump With R407C Refrigerant for Commerical Building
Applicable: collective dormitory, guesthouse, hotel, large club, sauna bath center
Features of Multifunction Air Source Heat Pump With R407C Refrigerant for Commerical Building heat pumps
1. Evaporator: thick wall and large diameter twisted spiral copper tube, independently developed. The thickness of 1.0 MM; High heat transfer efficiency, not easy to scale, large water flow, not easy to plug.
2. Motherboard chip: Motorola chip, strong anti-interference, stable performance, independent research and development according to equipment performance. Independent research and development, good waterproofing, stable signal, good anti-interference effect, full protection function, more effective protection unit.
3. American Valley wheel compressor: high temperature and high pressure flexible scroll type, low noise, long life.
4 expansion valve: the United States imported Alco expansion valve unit is more efficient, can automatically adjust, the use of winter defrosting effect is better.
5 fan motor: fan: professional dynamic balance design impeller, air volume test platform, no deformation, sufficient air volume, dynamic balance grasp ability is stronger! Motor wear resistance is higher, all copper wire motor.
6. Condenser: high heat exchange efficiency, not easy to scale, large water flow, not easy to plug.
7. Copper tube: the use of high purity copper tube, strong toughness, not easy to crack crack oxidation. The heat transfer efficiency is higher, the refrigerant is not easy to leak, the unit is more stable
8. Four-way valve:
Leomon air source heat pump Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 120 invention patents, more than 350 other patents, and participated in the preparation of 25 national standards.
Company invest over 20% into products and service imporovement everyear to meet various customer request
We are happy to say"We cannot promise that equipment won't break, that software won't fail, or that we will always be perfect. What we can promise is that if something goes wrong, we will rise to the occasion, take action, and resolve the issue."
Create an integrated high quality heat pump central hot water solution
Factory standardized production and commissioning, double quality inspection before leaving the factory, site free construction, only with the reserved hot and cold water pipe connection, can be used after power, the fastest - hours can produce hot water. The device adopts the new Internet of Things technology, mobile APP intelligent remote control, anytime and anywhere to control the hot standby operation.
With the whole industry chain resources of heat pump hot water industry, high-quality supply chain escorts the product efficiency
Leading core technology, - flow design concept, all parts suppliers are domestic and foreign high-quality enterprises, equipment production process strictly control, strict implementation of the test indicators, to provide the most comprehensive reliability guarantee for products.
Some paremters of Multifunction Air Source Heat Pump With R407C Refrigerant for Commerical Building
Spec. | DKFXRS-190II/R |
Nominal heating capacity at room temperature(kW) | 190 |
Nominal heating at room temperature(kW) | 43 |
Low-temperature nominal heating capacity(kW) |
84 |
Low temperature nominal heating(kW) | 32.6 |
Maximum input power(kW) | 80 |
Maximum current(A) | 176 |
Power Specifications(Hz) | 380V 3N ~ 50 |
Refrigerant/charge amount | R410A/8500gX4 |
noisedb(A) | <81 |
Water resistancekPa | <123 |
Anti-shock level | I |
waterproof level | IPX4 |
Caliber of inlet and outlet |
DN75 |
Unit size (mm) | 2206x2020x2170 |
Unit Weight(kg) | 1200 |
