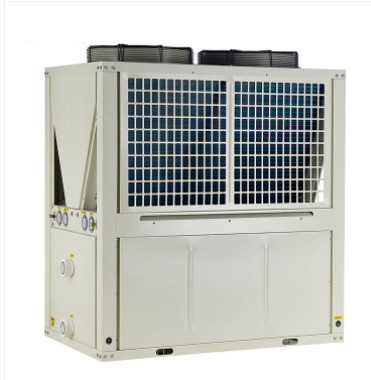

Features of Energy Evi Air To Source Heat Pump (11kw~28kw) Heating&Hot Water, R410A
A low-temperature environment cold and warm air energy heat pump system, comprising a fin heat exchanger, a shell and tube heat exchanger and a circulation system. The circulation system includes a compressor, a four-way valve, an expansion valve, an economizer (6), and a liquid reservoir Compared with the gas-liquid separator, the low-temperature environment cold and warm air energy heat pump system of the present invention optimizes the pipeline structure, so that cooling and heating share the same casing path and components, eliminating at least two one-way valves and one expansion valve. The pipeline structure is greatly simplified without affecting the cooling and heating process, the installation and maintenance are convenient, and the manufacturing cost and labor cost are reduced. The compressor air inlet of the cold and warm air energy heat pump system in the low temperature environment of the utility model is provided with two refrigerant gas recovery pipelines, which greatly improves the heating efficiency of the compressor, and has good low temperature heating performance, which is very suitable for long heating time and low temperature. Area.
Company intropduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 120 invention patents, more than 350 other patents, and participated in the preparation of 25 national standards.
Our strong and professional technical and marketing team ready to make best service!
Pre order(Inquiry progress):
Check with customer about usage, request specifications, enviroment and other request
Make details proposal/offer to customer
Order Processing
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and stability.
During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers
After sale service
2 years warranty
Feedback and solution will be provided within 1 working day
Free technical support!
Some specifications of Energy Evi Air To Source Heat Pump (11kw~28kw) Heating&Hot Water, R410A
Welcome to contact us for further details!
| Spec. | DKFXRS-19II/R | DKFXRS-38II/R | DKFXRS-95II/R | DKFXRS-190II/R |
| Nominal heating capacity at room temperature(kW) | 18.6 | 38.8 | 90 | 190 |
| Nominal heating at room temperature(kW) | 4.5 | 8.8 | 19.5 | 43 |
| Low-temperature nominal heating capacity(kW) |
8.6 | 17.7 | 42 | 84 |
| Low temperature nominal heating(kW) | 3.7 | 7.35 | 16.3 | 32.6 |
| Maximum input power(kW) | 8.3 | 17 | 40 | 80 |
| Maximum current(A) | 15 | 30 | 88 | 176 |
| Power Specifications(Hz) | 380V3N ~ 50 | 380V3N ~ 50 | 380V 3N ~ 50 | 380V 3N ~ 50 |
| Refrigerant/charge amount | R22/6500g | R22/6700gx2 | R410A/8500gX2 | R410A/8500gX4 |
| noisedb(A) | <66 | <68 | <78 | <81 |
| Water resistancekPa | <100 | <100 | <100 | <123 |
| Anti-shock level | I | |||
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
| Caliber of inlet and outlet |
DN32 | DN40 | DN50 | DN75 |
| Unit size (mm) | 780x820x1700 | 1550x780x1700 | 2206x1030x2170 | 2206x2020x2170 |
| Unit Weight(kg) | 263 | 431 | 750 | 1200 |
