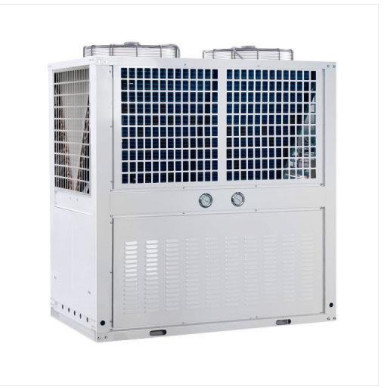

IPX4 Evi Scroll Air To Water Heat Pumps With Spray Coating Housing
IPX4 Evi Scroll Air To Water Heat Pumps With Spray Coating Housing
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: DKFXRS-16I/R
High Light:

DN32 Air To Water Heat Pumps


R410A IPX4 DHW Heat Pump


Spray Coating Evi Scroll Heat Pumps

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Working Medium: R410A
Heating Capacity:: 3.5-300Kw
Compressor: Copeland
Housing Material: Stainless Steel Or Spray Coating
Heat Exchanger: Tube In Shell Heat Exchanger
Heating: Circulating Instant Hot Water
Product Description


This series air source heat pumps are specially designed for cold climates and to work in outside air temperatures of -30°C. Its core philosophy is to solve the user‘s home heating requirements during winter and spring and provide cooling during a hot summer and autumn. High temperature EVI Scroll compressors are equipped with a vapour injection connection for Economizer Operation. Effective enhancement is accomplished by utilising a sub cooling circuit, it also increases heating capacity. The system is readily capable of reaching an outlet water temperature of 65°C

The refrigerant from the condenser is undercooled and then throttled, and then entered the evaporator to melt the frost layer on the evaporator. Compared with the commonly used reverse cycle defrosting, there are essential differences.

(1) Defrosting in the normal heating at the same time, does not affect heating and indoor load.

(2)It can better adapt to the defrosting requirements of fin heat exchanger in different environments and different parts, and do point-to-point accurate defrosting.

(3) Defrosting does not require any other energy, continuous constant heating efficiency.

(4) Set in the light frost, the frost will be removed, so that the unit in the frost-free state of operation.

Automatic scale removal and unique nitrogen bead antifreeze technology can effectively extend the high efficiency of heat exchanger service time and heat transfer efficiency.

Single chip microcomputer is a single chip microcontroller, chip integrated computer system, equivalent to a micro computer. Bo lang single chip microcomputer control system logic control careful, small volume, light weight, strong stability, can deal with various operating conditions and protection measures.

Adopt EVI air injection technology, double stage compression, improve heating efficiency, even under -25° C environment can be efficient operation.

Adopts American gold aluminum fin evaporator technology, precious metal nano double layer coating, defrosting more quickly. Effectively improve the evaporation efficiency of air and rain water, dust is not easy to accumulate, to ensure that -25℃ can also have a strong heat transfer.

Triple sound insulation and heat insulation

· The machine adopts triple sound insulation cotton, together with special shock absorbing pad, equipment foundation platform and customized fan, which can reduce the noise caused by operation vibration to below 55 dB.

· At the same time, it can effectively avoid the contact between the host and the outside low-temperature air, and protect the stable operation of the unit in the low-temperature environment.

Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 120 invention patents, more than 350 other patents, and participated in the preparation of 25 national standards.

Products series: swimming pool/spa air source heat pumps
All in one triple multifunctional heat pumps: heating(Central heating ,floor heating, radient heating)+cooling+ hot water or seperate function
Heat pumps water heater
as leader for air source heat pumps, decades experience,authorized over100 patents, leader for swimming pool air source heat pumps and other pumps, member for editing heat pumps field standards, strong and professional technical team

Our strong and professional technical and marketing team ready to make best service!

Pre order(Inquiry progress):

Check with customer about usage, request specifications, enviroment and other request

Make details proposal/offer to customer

Order Processing

  • Machine installed and tested by QA engineers.

  • Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.

  • Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.

  • Test and debug the equipments strictly to ensure the safety and stability.

  • During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers

  • After sale service

  • 2 years warranty

  • Feedback and solution will be provided within 1 working day

  • Free technical support!

  • Some specifications of Industrial Air Source Heat Pump Air To Water Chiller

  • Welcome to contact us for further details!

  • Some technical paremeters of  EVI SCROLL AIR TO WATER HEAT PUMPS

    Nominal heating capacity at room temperature(kW) 113 10.9 16 16.8
    Nominal heating at room temperature(kW) 2.56 2.65 3.9 4.1
    nominal heating
    4.8 4.75 7.9 8.1
    Low temperature nominal heating(kW) 2.1 2.15 3.38 3.5
    Maximum input power(kW) 4.2 4.2 6.6 6.8
    Maximum current(A) 23 8 32 12
    Power Specifications(Hz) 220V ~ 50 380V 3N ~ 50 220V ~ 50 380V 3N ~ 50
    Refrigerant/charge amount R22/5600g R22/5600g R22/6000g R22/6000g
    noisedb(A) <62 <62 <65 <65
    Water resistancekPa <55 <55 <100 <100
    Anti-shock level I
    waterproof level IPX4 IPX4 IPX4 IPX4
    Caliber of inlet
    and outlet
    DN32 DN32 DN32 DN32
    Unit size (mm) 1030x410x1390 1030x410x1390 1030x410x1390 1030x410x1390
    Unit Weight(kg) 142 142 148 149

Swimming pools, spas, restaurants, hotels, schools, household, wherever need heating, cooling or hot water

Some of our project

IPX4 Evi Scroll Air To Water Heat Pumps With Spray Coating Housing 0IPX4 Evi Scroll Air To Water Heat Pumps With Spray Coating Housing 1
