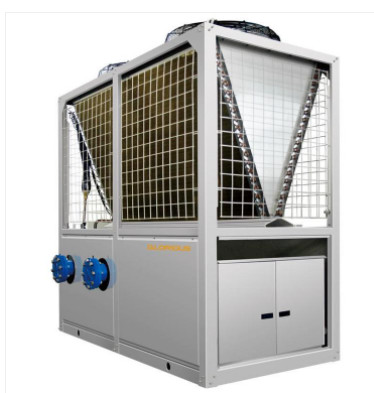

Spray Coating Housing 39KW Air Source DHW Heat Pump With EVl Compressor
Spray Coating Housing 39KW Air Source DHW Heat Pump With EVl Compressor
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: DKFXRS-38II/CY
High Light:

39KW Spray Coating Heat Pump


SS316 DHW Heat Pump


Spray Coating R407C DHW Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Working Medium: R410A
Heating Capacity:: 3.5-300Kw
Compressor: Copeland
Housing Material: Stainless Steel Or Spray Coating
Heat Exchanger: Tube In Shell Heat Exchanger
Heating: Circulating Instant Hot Water
Product Description

38-39KW Advanced Air Source Heat Pump

EVI heat pump introduction: With advanced EVI(enhanced vapor injection) technology, EVI heat pump can work stably at extremely low ambient temperature with high COP. This type heat pump has a 5.0 COP at -25℃ with 65℃ hot water output and can safely work in -30℃ outside air temperature.

EVI heat pump features: 1. Hot water output temperature up to 65℃.

2. Suitable for cold area, safely working in -30℃ ambient temperature.

3. COP can be up to 5.0, at -15℃ .

4. Eco-friendly refrigerant: R407C/R410A

5. Automatic defrosting function included (with reverse cycle valve inside).

6. Anti-corrosion case: durable coating; no-screw design with stainless steel bolts and nuts, no rust. EVI heat pump Main components: Compressor:Copeland new designed scroll compressor with Gas injection increase enthalpy Heat exchanger: Stainless steel plate heat exchanger & Coaxial Coil heat exchanger Evaporator: Hydrophilic high efficiency fin-tube evaporator Expansion valves: Main thermal expansion valves & Spray thermal expansion valves Electromagnetic valve: Emerson electromagnetic valve


4-way valve

Al-Mg fan motor

Nylon blades


Emersion thermal

expansive valve


Copeland EVl tech compressor


316 L Stainless

steel plate




coaxial coil


Golden hydrophobic fin-tube evaporator

stronger corrosion protection


Company introduction

20 years of professional heat pump system technology excellence

We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 12 invention patents, more than 50 other patents, and participated in the preparation of 25 national standards.


Top supplier for various heat pumps, OEM/ODM also welcome!



38-39KW Advanced Air Source Heat Pump

  • Spec. DKFXRS-38II/CY
    Nominal heating at room temperature(kW) 38.9
    Nominal power consumption at room temperature(kW 8.82
    Low temperature heating(kW) 17.6
    Low temperature power consumption(kW) 7.3
    Maximum input power(kW) 17
    Maximum current(A) 30
    Power Spec.(Hz) 380V 3N-50
    Refrigerant/charge amount R22/6500gx2
    noisedb(A) <68
    Water resistancekPa <65
    Anti-shock level I
    waterproof level IPX4
    Circulation port diameter DN40
    Unit size (mm) 1550x780x1700
    Unit Weight(kg) 435
  • Application of 38-39KW Advanced Air Source Heat Pump

Swimming pools, spas, restaurants, hotels, schools, household, wherever need heating, cooling or hot water

Some of our projects

Welcome to contact for further details!
