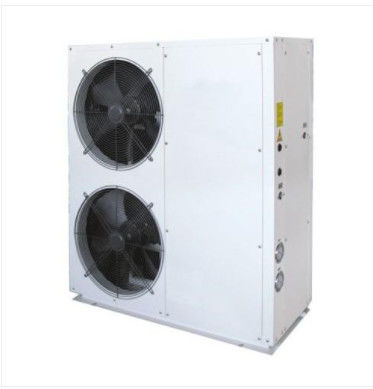

EVI low Ambient air source heat pump (Heating mode, monoblock type)
Air Source Heat Pump for Domestic Water Heating and Floor Heating. Manufactured with Copeland Scroll Compressor and High Efficiency Shell & Tube Heat Exchanger. range heat pump (for DHW and/or house heating) is designed special for domestic hot water and house heating system even at low ambient temperature (-30C)
Low mute design, quiet operation; Reliable operation, high efficiency and energy saving; Flexible combination, convenient installation; Complete control, simple operation; The appearance is novel and beautiful; Multi-system design, low maintenance cost; Unit protection function is complete, use more assured.
Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 12 invention patents, more than 50 other patents, and participated in the preparation of 25 national standards.
Top supplier for various heat pumps, OEM/ODM also welcome!
EVI low Ambient air source heat pump (Heating mode, monoblock type)
| Spec. | DKFXRS-19II/R | DKFXRS-38II/R | DKFXRS-95II/R | DKFXRS-190II/R |
| Nominal heating capacity at room temperature(kW) | 18.6 | 38.8 | 90 | 190 |
| Nominal heating at room temperature(kW) | 4.5 | 8.8 | 19.5 | 43 |
| Low-temperature nominal heating capacity(kW) |
8.6 | 17.7 | 42 | 84 |
| Low temperature nominal heating(kW) | 3.7 | 7.35 | 16.3 | 32.6 |
| Maximum input power(kW) | 8.3 | 17 | 40 | 80 |
| Maximum current(A) | 15 | 30 | 88 | 176 |
| Power Specifications(Hz) | 380V3N ~ 50 | 380V3N ~ 50 | 380V 3N ~ 50 | 380V 3N ~ 50 |
| Refrigerant/charge amount | R22/6500g | R22/6700gx2 | R410A/8500gX2 | R410A/8500gX4 |
| noisedb(A) | <66 | <68 | <78 | <81 |
| Water resistancekPa | <100 | <100 | <100 | <123 |
| Anti-shock level | I | |||
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
| Caliber of inlet and outlet |
DN32 | DN40 | DN50 | DN75 |
| Unit size (mm) | 780x820x1700 | 1550x780x1700 | 2206x1030x2170 | 2206x2020x2170 |
| Unit Weight(kg) | 263 | 431 | 750 | 1200 |
Swimming pools, spas, restaurants, hotels, schools, household, wherever need heating, cooling or hot water
Some of our projects
Welcome to contact for further details!
