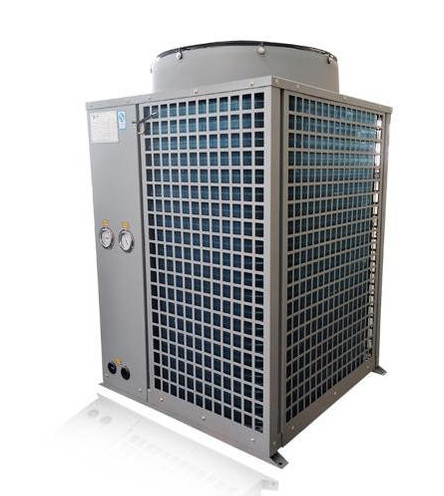

Features of 3HP Split Air Source Heat Pump DC Inverter
★ DC Inverter Heat Pump, Ambient Temperature Lower to -25°C. The Heating Capacity "NO"
Attenuation even lower to -15°C ; Operation Steadily,COP 30% Higher than Normal heat pump; Meet the needs of Heating, Cooling and Hot Water
★ Designed as Split Type , Indoor Unit and Outdoor Unit Connected by Copper pipe, Installation With Simple, Flexible and Conveniently. The Indoor Unit can be Installed in Kitchen, Bathroom or basement,Ensuring less Energy loss, also Prevent Water Pipes
From Freezing in Cold Winter and sun Exposure in Summer.
★ Indoor Unit Includes:Plate Heat Exchanger, Controller, Water Pump, Differential Pressure Flow Switch, Three Way Valve and so on parts.
★ Outdoor Unit Includes:Compressor, Evaporator, Controller, Expansion Valve, Four way valve, Motor,Refrigerant valve and so on parts.
★ Using DC Inverter Compressor, Green Environment & High-Efficiency, Providing Wonderful
Performance and Reliability.
For further specification of 3HP Split Air Source Heat Pump DC Inverter and other specifications, welcome to contact us!
| Unit type | SJKRS-28 II/C | SJKRS-36II/C | SJKRS-55 II/C | SJKRS-73 I/C | SJKRS-106 IC | SJKRS-I60II /C | |
| Specifications | 7.5HP | 10HP | 15HP | 20HP | 30HP | 40HP | |
| Power supply | Three-phase five-wire380V/50Hz | ||||||
| Heating mode | Direct heat/cycle type | ||||||
| Standard working condition | Heating capacity( kw ) | 27.5 | 36.7 | 55.1 | 72.8 | 10.6.5 | 155.1 |
| Input Power(kW) | 6.1 | 8.2 | 13.7 | 16.1 | 23.6 | 34.5 | |
| COP | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | |
| Hot Water flow(m³/h) | 0.59 | 0.79 | 1.18 | 1.56 | 2.29 | 3.33 | |
| High temperature condition | Heating capacity kw ) | 23.9 | 28.5 | 51.5 | 59.5 | 89 | 13.1.5 |
| Input Power(kW) | 7.5 | 8.9 | 16.1 | 18.6 | 27.8 | 41.1 | |
| COP | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Hot Water flow(m³/h) | 0.27 | 0.33 | 0.59 | 0.68 | 1.02 | 1.51 | |
| Low temperature condition | Heating capacity( kw ) | 17.3 | 21.4 | 34.8 | 41.5 | 62.2 | 94.5 |
| Input Power(kW) | 6.2 | 7.6 | 12.4 | 14.8 | 22.2 | 33.8 | |
| COP | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | |
| Hot Water flow(m³/h) | 0.32 | 0.4 | 0.65 | 0.78 | 1.16 | 1.77 | |
| Component Information | Size of water pipe joint | DN20 | DN25 | DN32 | DN40 | ||
| Water heat exchanger | Plate or sleeve heat exchanger | ||||||
| Air Heat Exchanger | Aluminum Fin for copper tube | ||||||
| compressor type | Semi-closed reciprocating | ||||||
| Operation Panel | Color touch screen | ||||||
| Maximum outlet temperature(℃) | 90℃ | ||||||
| Refrigerants | R744 (CO2 ) | ||||||
| Design pressure(MPa) | High side 15, low side 8 | ||||||
| Dimensions (length, width and height mm) | 1450x950x1450 | 1600x950x1500 | 1850x1150x1900 | 2050x1150x1950 | 2670x1410x2150 | 2290x2270x1980 | |
| Noise (dB) | 56 | 59 | 62 | 67 | 70 | 70 | |
| Weight(kg) | 550 | 660 | 780 | 860 | 1180 | 221360 | |
| SCOPE of use | Feed water temperature(℃) | 5~ 40 | |||||
| Feed water pressure | 0.05~ 0.4 | ||||||
| Effluent temperature(℃) | 55~ 90 | ||||||
| Maximum flow | 1.2 | 1.5 | 2.4 | 3.2 | 4.9 | 6.5 | |
| Ambient temperature(℃) | ’-20~43 | ||||||
