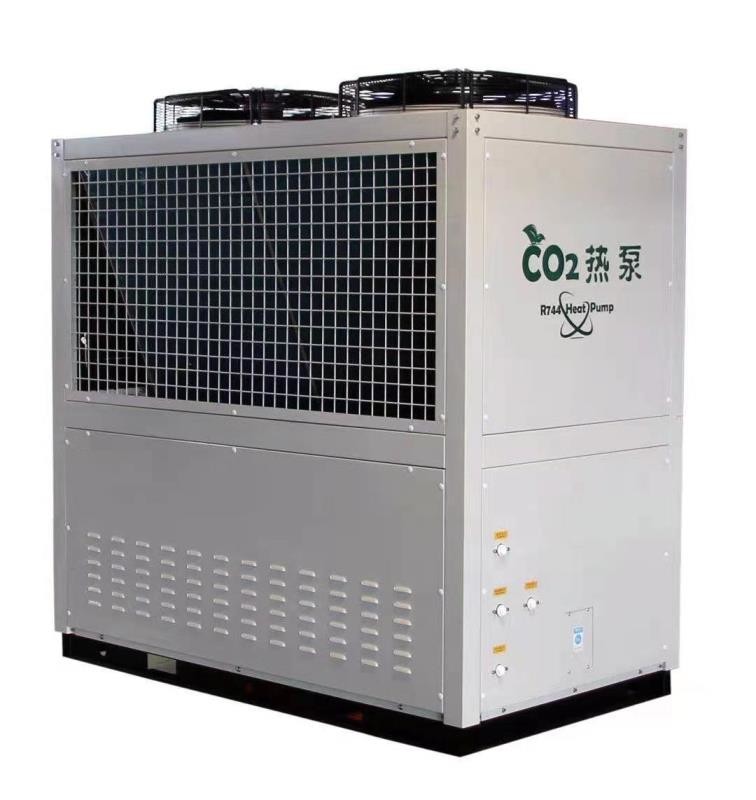

Performance of CO2 R744 High Temperature Heat Pump up to 90c Degree
CO2 heat pumps use energy from the environment to generate heat. Non-flammable carbon dioxide is an exceptionally eco-friendly refrigerant, so CO2 heat pumps can considerably reduce harmful emissions. CO2 is also an excellent refrigerant because it is not flammable and there is an abundance of it on earth.
How to heat, the smarter way
You can save more on your energy bills—and contribute to a cleaner, greener and more sustainable future—with Automatic Heating Global’s CO2 Heat Pumps.
Boasting an efficiency around four times that of conventional electric water heating technology, Revere™ CO2 Heat Pumps use minimal power and clever technology to heat your water to 90°C by extracting heat from the ambient air. Better yet, this process does not contribute to global warming, or run any of the risks associated with traditional combustion.
CO2 R744 High Temperature Heat Pump up to 90c Degree specifications
| Unit type | SJKRS-28 II/C | SJKRS-36II/C | SJKRS-55 II/C | SJKRS-73 I/C | SJKRS-106 IC | SJKRS-I60II /C | |
| Specifications | 7.5HP | 10HP | 15HP | 20HP | 30HP | 40HP | |
| Power supply | Three-phase five-wire380V/50Hz | ||||||
| Heating mode | Direct heat/cycle type | ||||||
| Standard working condition | Heating capacity( kw ) | 27.5 | 36.7 | 55.1 | 72.8 | 10.6.5 | 155.1 |
| Input Power(kW) | 6.1 | 8.2 | 13.7 | 16.1 | 23.6 | 34.5 | |
| COP | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | |
| Hot Water flow(m³/h) | 0.59 | 0.79 | 1.18 | 1.56 | 2.29 | 3.33 | |
| High temperature condition | Heating capacity kw ) | 23.9 | 28.5 | 51.5 | 59.5 | 89 | 13.1.5 |
| Input Power(kW) | 7.5 | 8.9 | 16.1 | 18.6 | 27.8 | 41.1 | |
| COP | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Hot Water flow(m³/h) | 0.27 | 0.33 | 0.59 | 0.68 | 1.02 | 1.51 | |
| Low temperature condition | Heating capacity( kw ) | 17.3 | 21.4 | 34.8 | 41.5 | 62.2 | 94.5 |
| Input Power(kW) | 6.2 | 7.6 | 12.4 | 14.8 | 22.2 | 33.8 | |
| COP | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | |
| Hot Water flow(m³/h) | 0.32 | 0.4 | 0.65 | 0.78 | 1.16 | 1.77 | |
| Component Information | Size of water pipe joint | DN20 | DN25 | DN32 | DN40 | ||
| Water heat exchanger | Plate or sleeve heat exchanger | ||||||
| Air Heat Exchanger | Aluminum Fin for copper tube | ||||||
| compressor type | Semi-closed reciprocating | ||||||
| Operation Panel | Color touch screen | ||||||
| Maximum outlet temperature(℃) | 90℃ | ||||||
| Refrigerants | R744 (CO2 ) | ||||||
| Design pressure(MPa) | High side 15, low side 8 | ||||||
| Dimensions (length, width and height mm) | 1450x950x1450 | 1600x950x1500 | 1850x1150x1900 | 2050x1150x1950 | 2670x1410x2150 | 2290x2270x1980 | |
| Noise (dB) | 56 | 59 | 62 | 67 | 70 | 70 | |
| Weight(kg) | 550 | 660 | 780 | 860 | 1180 | 221360 | |
| SCOPE of use | Feed water temperature(℃) | 5~ 40 | |||||
| Feed water pressure | 0.05~ 0.4 | ||||||
| Effluent temperature(℃) | 55~ 90 | ||||||
| Maximum flow | 1.2 | 1.5 | 2.4 | 3.2 | 4.9 | 6.5 | |
| Ambient temperature(℃) | ’-20~43 | ||||||
