As CO₂ is a natural, non-HFC refrigerant, it boasts an ozone depletion potential (ODP) of zero, and a global warming potential (GWP) of 1.
Conversely, traditional HFC refrigeration systems adversely impact climate change in two distinct ways: direct and indirect contribution. Direct contribution results from the release of refrigerants into the atmosphere.
Indirect contribution refers to the energy used to operate traditional refrigeration equipment. Essentially, the less energy required to operate the equipment, the lower the impact on the environment.
In order to provide answers in the case of special requirements, it is often necessary to identify solutions that deviate from the standard. Ecodan heat pump systems, which can be used for heating, cooling and domestic hot water (DHW) production, use the refrigerant R410A – in contrast, the QAHV uses the refrigerant R744. After all, pure hot water heat pumps, which are tasked with generating particularly high hot water temperatures, have to meet very different requirements of their own.

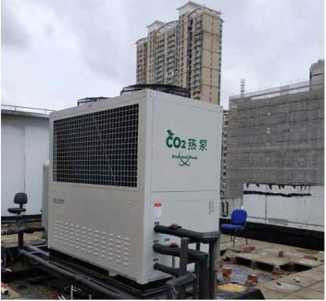

R744 – A REFRIGERANT FROM NATUREBehind the type designation R744 is the natural refrigerant CO2. Carbon dioxide (CO2) is almost the ideal refrigerant in ecological and safety-related terms as it has an ozone depletion potential (ODP) of 0. In addition, it is non-toxic, non-flammable and chemically inert – properties that render recovery and disposal unnecessary Heat pumps with environmentally friendly refrigerant R-744 (CO2). |
| Unit type | SJKRS-28 II/C | SJKRS-36II/C | SJKRS-55 II/C | SJKRS-73 I/C | SJKRS-106 IC | SJKRS-I60II /C | |
| Specifications | 7.5HP | 10HP | 15HP | 20HP | 30HP | 40HP | |
| Power supply | Three-phase five-wire380V/50Hz | ||||||
| Heating mode | Direct heat/cycle type | ||||||
| Standard working condition | Heating capacity( kw ) | 27.5 | 36.7 | 55.1 | 72.8 | 10.6.5 | 155.1 |
| Input Power(kW) | 6.1 | 8.2 | 13.7 | 16.1 | 23.6 | 34.5 | |
| COP | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | |
| Hot Water flow(m³/h) | 0.59 | 0.79 | 1.18 | 1.56 | 2.29 | 3.33 | |
| High temperature condition | Heating capacity kw ) | 23.9 | 28.5 | 51.5 | 59.5 | 89 | 13.1.5 |
| Input Power(kW) | 7.5 | 8.9 | 16.1 | 18.6 | 27.8 | 41.1 | |
| COP | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Hot Water flow(m³/h) | 0.27 | 0.33 | 0.59 | 0.68 | 1.02 | 1.51 | |
| Low temperature condition | Heating capacity( kw ) | 17.3 | 21.4 | 34.8 | 41.5 | 62.2 | 94.5 |
| Input Power(kW) | 6.2 | 7.6 | 12.4 | 14.8 | 22.2 | 33.8 | |
| COP | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | |
| Hot Water flow(m³/h) | 0.32 | 0.4 | 0.65 | 0.78 | 1.16 | 1.77 | |
| Component Information | Size of water pipe joint | DN20 | DN25 | DN32 | DN40 | ||
| Water heat exchanger | Plate or sleeve heat exchanger | ||||||
| Air Heat Exchanger | Aluminum Fin for copper tube | ||||||
| compressor type | Semi-closed reciprocating | ||||||
| Operation Panel | Color touch screen | ||||||
| Maximum outlet temperature(℃) | 90℃ | ||||||
| Refrigerants | R744 (CO2 ) | ||||||
| Design pressure(MPa) | High side 15, low side 8 | ||||||
| Dimensions (length, width and height mm) | 1450x950x1450 | 1600x950x1500 | 1850x1150x1900 | 2050x1150x1950 | 2670x1410x2150 | 2290x2270x1980 | |
| Noise (dB) | 56 | 59 | 62 | 67 | 70 | 70 | |
| Weight(kg) | 550 | 660 | 780 | 860 | 1180 | 221360 | |
| SCOPE of use | Feed water temperature(℃) | 5~ 40 | |||||
| Feed water pressure | 0.05~ 0.4 | ||||||
| Effluent temperature(℃) | 55~ 90 | ||||||
| Maximum flow | 1.2 | 1.5 | 2.4 | 3.2 | 4.9 | 6.5 | |
| Ambient temperature(℃) | ’-20~43 | ||||||
