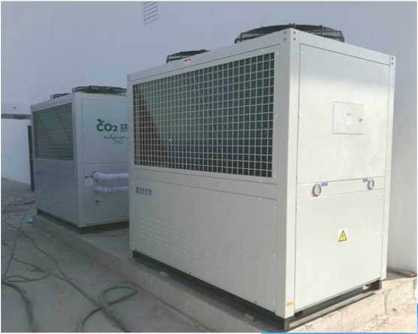

Outdoor High Temperature R744 CO2 Heat Pump Eco friendly 70C 90C
Outdoor High Temperature R744 CO2 Heat Pump Eco friendly 70C 90C
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC ROHS
Model Number: SJKRS-106 IC
High Light:

Outdoor R744 CO2 Heat Pump


Eco friendly 70C CO2 Heat Pump


High Temperature R744 Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Referigeration: CO2 R744
Application:: Outdoor, Hotel, Commercial, Household
Use:: Space Heating, Cooling, Hot Water Solutions
Function:: Space Heating,Cooling & Hot Water
Max Hot Water Te: 70-90 C
Working Ambient Tem: -25C To 43C
Product Description

High Temperature R744 CO2 Heat Pump

Superior Features and Benefits

  • Heats up to 90°C – Due to its innovative design, the Revere™ CO2 Heat Pump can produce hot water up to 90°C at low and high ambient temperatures (-20°C to 43°C).
  • Flexible – The same system can be simultaneously used for Space Heating & Domestic Hot Water.
  • Ultra quiet operation – 60dB(A)
  • No combustion – reduces fire risk
  • Suitable for up to 60°C ΔT (flow 90°C, return 30°C)
  • Ambient operating temperatures from -5°C to 43°C (Special unit available for -15°C or -20°C)
  • Safe – Non-flammable CO₂ refrigerant
  • Compact – 30% Space Saving due to Y Frame design (CHP-80)
  • Versatile – Suitable for a wide range of purposes, from small facilities to large buildings where hot water or heating is required.
  • Eco friendly – The Revere™ CO2 Heat Pump uses natural CO₂ refrigerant. This refrigerant has a global warming potential (GWP) of about 1/1700 that of R410 and zero ozone-depleting potential (ODP).
  • Energy efficient – Under optimal conditions, Revere™ CO2 Heat Pumps achieve an exceptional coefficient of performance (up to 4.2) which equates to higher energy efficiency. Compared to the traditional electric hot water heater, the CO2 hot water heat pump can save up to 75% heating energy. Further energy cost savings can be achieved through operation during off-peak times when a lower tariff is available.
  • Anti-freeze/Cold Area Units – the heat pump is fitted with a defrost solenoid valve which will open when the evaporator ices up. The hot gas will then flow through the evaporator and melts the ice.
  • One pass heating – It is suitable for heating water from low to high temperatures (large temperature difference) in one pass.
  • Reduces storage requirements – Since this hot water heat pump can heat water up to 90ºC, the size of the storage tank can be reduced.
Specifications 7.5HP 10HP 15HP 20HP 30HP 40HP
Power supply Three-phase five-wire380V/50Hz
Heating mode Direct heat/cycle type
Standard working condition Heating capacity( kw ) 27.5 36.7 55.1 72.8 10.6.5 155.1
Input Power(kW) 6.1 8.2 13.7 16.1 23.6 34.5
COP 4.5 4.5 4.5 4.5 4.5 4.5
Hot Water flow(m³/h) 0.59 0.79 1.18 1.56 2.29 3.33
High temperature condition Heating capacity kw ) 23.9 28.5 51.5 59.5 89 13.1.5
Input Power(kW) 7.5 8.9 16.1 18.6 27.8 41.1
COP 3.2 3.2 3.2 3.2 3.2 3.2
Hot Water flow(m³/h) 0.27 0.33 0.59 0.68 1.02 1.51
Low temperature condition Heating capacity( kw ) 17.3 21.4 34.8 41.5 62.2 94.5
Input Power(kW) 6.2 7.6 12.4 14.8 22.2 33.8
COP 2.8 2.8 2.8 2.8 2.8 2.8
Hot Water flow(m³/h) 0.32 0.4 0.65 0.78 1.16 1.77
Component Information Size of water pipe joint DN20 DN25 DN32 DN40
Water heat exchanger Plate or sleeve heat exchanger
Air Heat Exchanger Aluminum Fin for copper tube
compressor type Semi-closed reciprocating
Operation Panel Color touch screen
Maximum outlet temperature(℃) 90℃
Refrigerants R744 (CO2 )
Design pressure(MPa) High side 15, low side 8
Dimensions (length, width and height mm) 1450x950x1450 1600x950x1500 1850x1150x1900 2050x1150x1950 2670x1410x2150 2290x2270x1980
Noise (dB) 56 59 62 67 70 70
Weight(kg) 550 660 780 860 1180 221360
SCOPE of use Feed water temperature(℃) 5~ 40
Feed water pressure 0.05~ 0.4
Effluent temperature(℃) 55~ 90
Maximum flow 1.2 1.5 2.4 3.2 4.9 6.5
Ambient temperature(℃) ’-20~43
