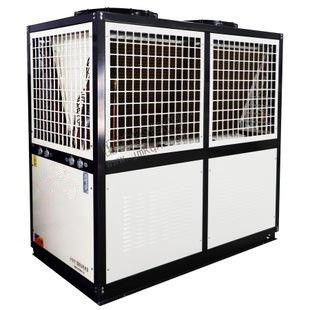

Agricultural and livestock breeding brooding heat pump heater_breeding constant temperature machine
The air energy breeding constant temperature machine uses the current advanced air energy technology, adopts the reverse Carnot working principle, absorbs low-grade heat energy from the air, uses electric energy to drive the compression energy to increase, and changes the heat from low-grade, low-temperature to high-grade , High temperature, transfer from outdoor air to indoor air to achieve "take from air, use for air"; the energy transfer process consumes a small amount of electric energy, and most of the heat is taken from air, realizing high efficiency and energy saving.
Technical advantages of air-energy breeding constant temperature machine
2.1 Winter guarantee
Breeding constant temperature machine adopts multiple energy sources to complement each other, integrates air energy and electric energy design, adjusts the auxiliary relationship between the two energy sources according to the changes in the external environment temperature, and ensures that the indoor temperature in winter reaches 35°C or more, ensuring the heating effect in low temperature and bad weather in winter .
2.2 Cooling and dehumidification
In the summer high temperature and high humidity season, quickly dehumidify and cool the livestock and poultry houses.
2.3 High efficiency and energy saving
Air is the main heat source, one-time heat exchange, and the energy efficiency ratio is very high. The heating cost in winter is the same as that of coal. It is more energy-efficient in spring and autumn, saving 60% than gas and 70% than fuel, without any emission pollution.
2.4 Adjustable fresh air
Set up outdoor fresh air valve, according to the air quality requirements in the livestock and poultry house, part of the fresh air is mixed with the return air, heated and sent into the house to ensure the air quality and reduce the heat loss.
2.5 Scientific air supply
Design scientific airflow organization, design multi-layer louvered air vents at the end of the air vents, large air masses send air at low wind speed, and the air volume and direction can be adjusted to achieve the most uniform air delivery effect.
2.6 Green environmental protection
The air-energy breeding thermostat uses clean energy for heating, and the heating process has no emissions and no pollution, and it meets the relevant national environmental protection policies and requirements.
2.7 Self-disinfection function
When the breeding house is disinfected, the indoor temperature is heated to 20°C, which enhances the indoor sterilization and disinfection effect, and the indoor air is closed and circulated in the system during the heating process, which has a sterilization and disinfection effect on the inside of the air-energy breeding thermostat.
2.8 Zone temperature control
According to the characteristics of the building structure of the breeding shed, the unitized zone temperature control is implemented for the breeding shed to fully ensure the indoor constant temperature effect, reduce the temperature difference between the upper and lower indoors, and eliminate the parallel temperature difference between the front, middle and back.
Spec. | DKFXRS-9I/CY | DKFXRS-11I/CY | DKFXRS-11II/CY | DKFXRS-16I/CY |
Nominal heating at room temperature・(kW) | 9.6 | 10.9 | 10.8 | 16 |
Nominal power consumption at room temperature(kW〕 | 2.17 | 2.63 | 2.7 | 3.9 |
Low temperature heating(kW) | 4.1 | 4.65 | 4.8 | 7.8 |
Low temperature power consumption(kW) | 1.85 | 2.1 | 2.16 | 3.37 |
Maximum input power(kW) | 3 | 4.2 | 4.2 | 6.6 |
Maximum current(A) | 16 | 23 | 8A | 32 |
Power Spec.(Hz) | 220V-50 | 220V-50 | 380V3N-50 | 220V-50 |
Refrigerant/charge amount | R22/2500g | R22/5600g | R22/5600g | R22/6000g |
noisedb(A) | <55 | <62 | <62 | <65 |
Water resistancekPa | <55 | <55 | <55 | <100 |
Anti-shock level | I | I | I | I |
waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
Circulation port diameter | DN20 | DN32 | DN32 | DN32 |
Unit size (mm) | 1010x350x835 | 1030x410x1390 | 1030x410x1390 | 1030x410x1390 |
Unit Weight(kg) | 87 | 142 | 142 | 148 |
Spec. | DKFXRS-16II/CY | DKFXRS-19II/CY | DKFXRS-38II/CY |
Nominal heating at room temperature・(kW) | 16.4 | 17.4 | 38.9 |
Nominal power consumption at room temperature(kW〕 | 4.1 | 4.6 | 8.82 |
Low temperature heating(kW) | 7.5 | 8.5 | 17.6 |
Low temperature power consumption(kW) | 3.4 | 3.68 | 7.3 |
Maximum input power(kW) | 6.8 | 8.5 | 17 |
Maximum current(A) | 12 | 15 | 30 |
Power Spec.(Hz) | 380V 3N-50 | 380V3N-50 | 380V 3N-50 |
Refrigerant/charge amount | R22/6000g | R22/6500g | R22/6500gx2 |
noisedb(A) | <65 | <66 | <68 |
Water resistancekPa | £100 | <65 | <65 |
Anti-shock level | I | I | I |
waterproof level | IPX4 | IPX4 | IPX4 |
Circulation port diameter | DN32 | DN32 | DN40 |
Unit size (mm) | 1030x410x1390 | 780x820x1700 | 1550x780x1700 |
Unit Weight(kg) | 149 | 265 | 435 |
FAQ:
Q1 | How about your delivery time ? |
A1 | Generally, it will take 1 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. |
Q2 | What is your term of delivery ? |
A2 | EXW, FOB, CIF, etc |
Q3 | What is your terms of packing? |
A3 | Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters. |
Q4 | What is your sample policy? |
A4 | We accept the sample order, but the customers have to pay the sample cost and the courier cost. |
Q5 | Do you test all your goods before delivery? |
A5 | Yes, we have 100% test before we pack the goods for delivery |
Q6 | How long is the guarantee time? |
A6 | 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period. |
