(1) The air source heat pump system integrates cold and heat sources. There is no need to set up a special refrigerating machine room or boiler room. The unit can be placed on the roof or the ground arbitrarily without occupying the effective use area of the building. The construction and installation are very simple.
(2) The air source heat pump system has no cooling water system, no cooling water consumption, and no cooling water system power consumption. In addition, many cases of Legionella infection caused by cooling water pollution have been reported. From the perspective of safety and health, considering air source heat pumps also has significant advantages.
(3) The air source heat pump system does not require a boiler, a corresponding boiler fuel supply system, a dust removal system, and a flue gas discharge system. The system is safe and reliable, and does not pollute the environment.
(4) The air source heat pump cold (hot) water unit adopts a modular design, and there is no need to set up a standby unit. The computer automatically controls during operation to adjust the operating status of the unit to adapt the output power to the working environment.
(5) The performance of the air source heat pump will vary with outdoor climate changes.

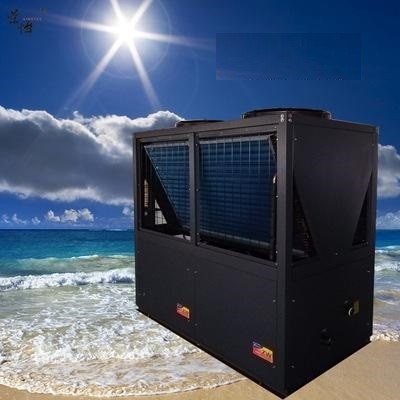

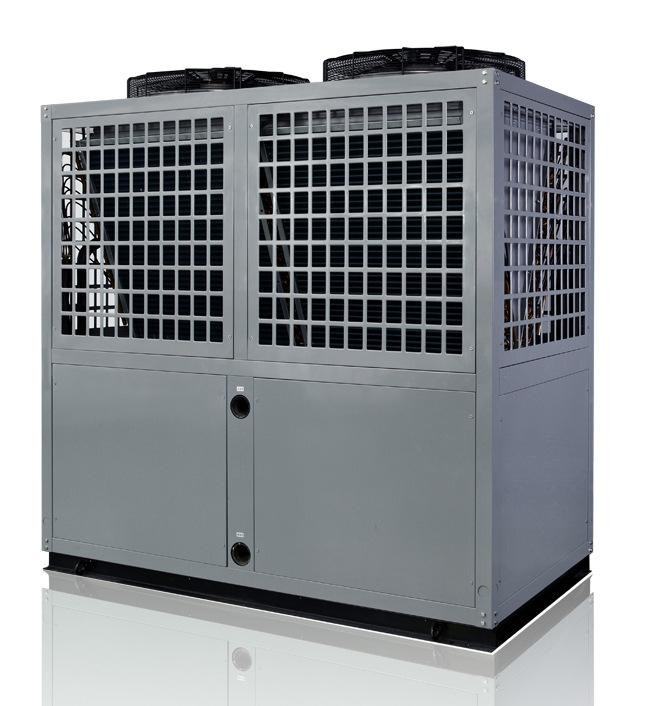

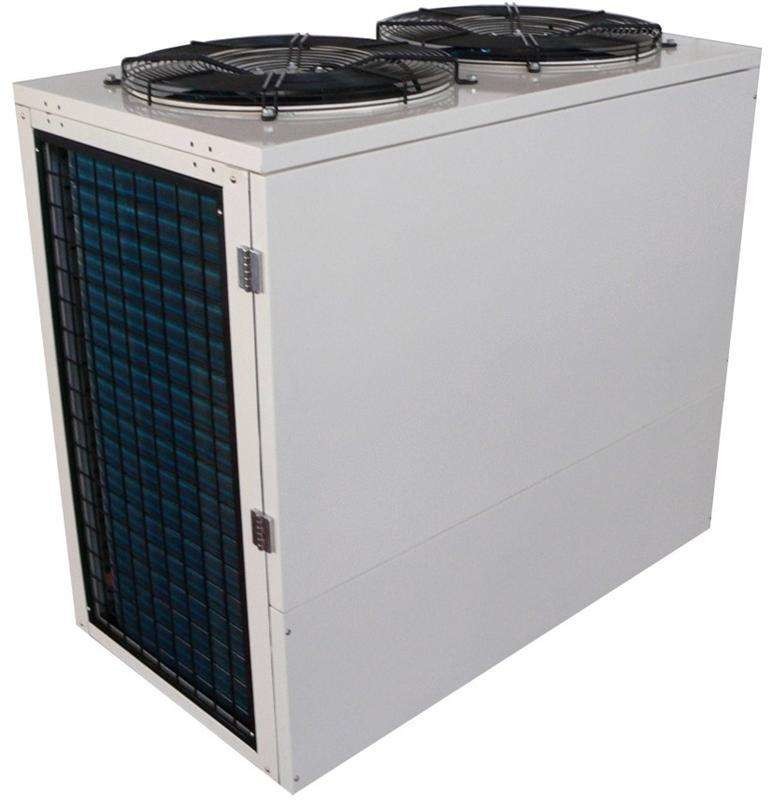

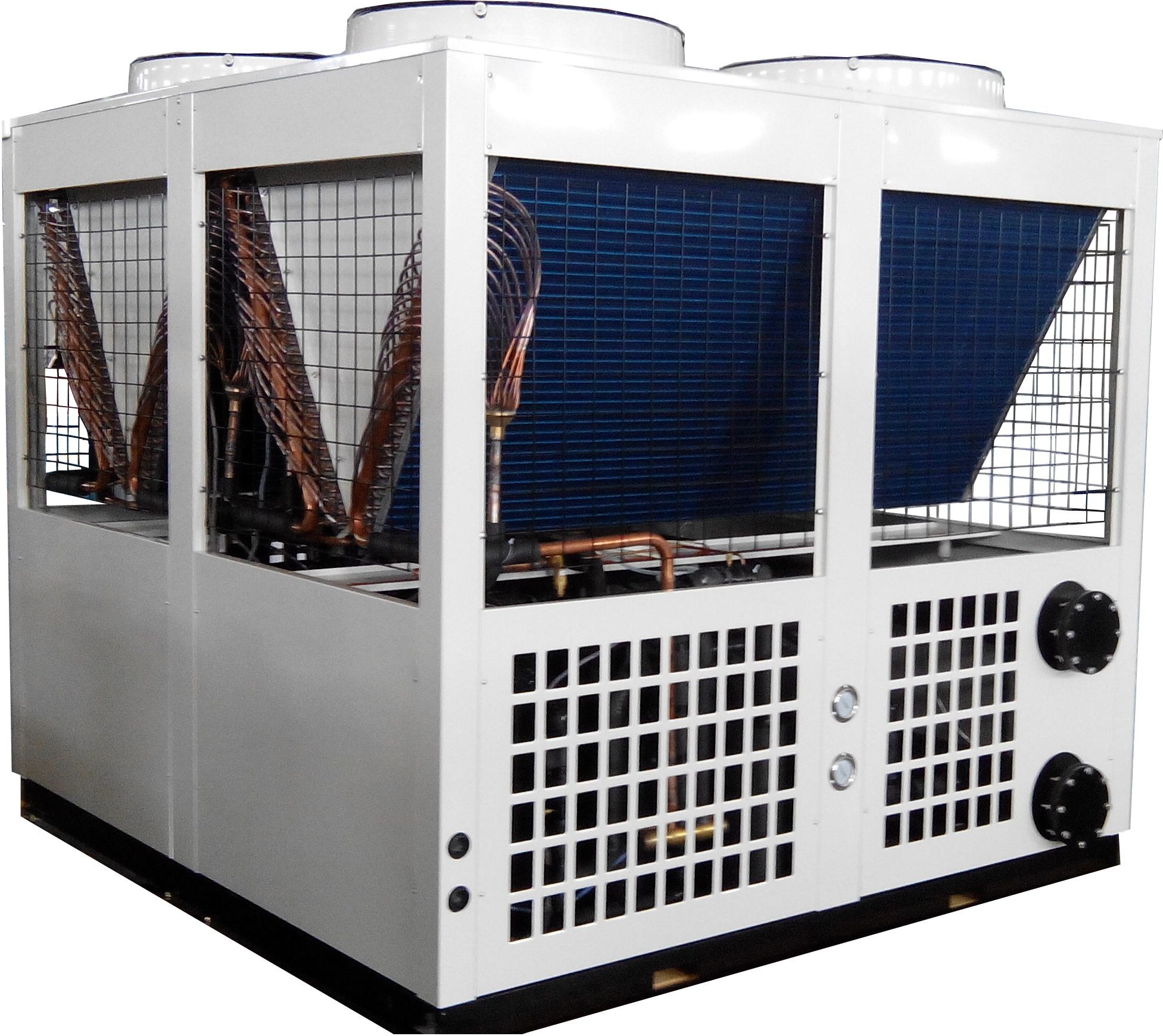

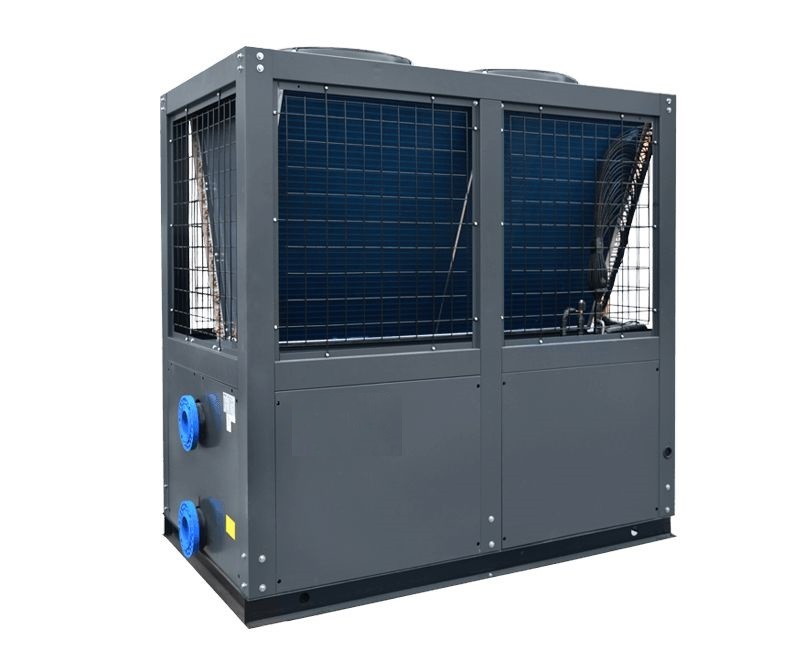

Some specification of R410A Bomba de Calor Air Source Pool Heater Full Inverter Heat Pump
| Spec. | KRY-8II | KRY-12II | KRY-24II | KRY-48II | KRY-96II | KRY-145II | KRY-220II |
| Rated heating capacity(A24/26oC) | 8kw | 12kw | 24kw | 48kw | 96kw | 145kw | 220kw |
| Rated power(kW) | 1.56 | 2.35 | 4.7 | 9.3 | 18.5 | 23.6 | 42.5 |
| COP | 5.1 | 5.1 | 5.1 | 5.16 | 5.41 | 6.14 | 5.17 |
| Rated heating capacityA20/26oC | 7.5kw | 11kw | 21kw | 44 kw | 90kw | 138kw | 208kw |
| Rated power(kW) | 1..5 | 2.3 | 4.5 | 8.6 | 17.5 | 24.1 | 41.5 |
| COP | 5 | 4.78 | 4.66 | 5.11 | 5.14 | 5.73 | 5 |
| Cooling Capacity(kW) | 3.8 | 5.7 | 11.3 | 23.7 | 40 | 58.1 | 98 |
| Consumed Power(kW) | 1.67 | 2.5 | 4.9 | 9.1 | 18.2 | 24.2 | 39 |
| EER | 2.3 | 2.3 | 2.3 | 2.6 | 2.2 | 2.4 | 2.5 |
| Rated voltage(Hz) | 220V 50HZ | 220V 50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ |
| Maximum input power(kW) | 2 | 3 | 6 | 12 | 24 | 36.5 | 61 |
| Maximum current(A) | 8 | 12 | 24 | 42 | 80 | 90 | 130 |
| Water flownWh | 2.3 | 3.5 | 7 | 13 | 32 | 41 | 62 |
| noise dB(A) | <50 | <50 | <65 | <68 | <69 | <71 | <73 |
| Anti-shock level | I | I | I | I | I | I | I |
| waterproof level | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 |
| Unit size (mm) | 910x350x835 | 1030x410x865 | 780x820x1700 | 1550x780x1700 | 1550x1550x1700 | 2360x1550x1840 | 2206x2020x2170 |
| Unit Weight(kg) | 65 | 95 | 260 | 380 | 760 | 2100 | 4005 |
