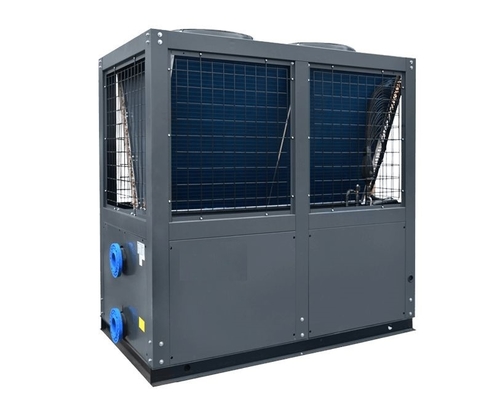

Optimal selection of professional swimming pool constant temperature heat pump equipment
Automatic heating control, special heating constant temperature for swimming pool, help you save more than 80% of heating costs
Special heating for swimming pool, automatic digital display temperature
The swimming pool thermostatic heat pump is completely separated from water and electricity. Separation design. High-voltage shutdown protection, over-temperature protection and water flow, current protection, etc. Eliminates flammable/explosive and gas poisoning of ordinary heat pump units
High efficiency and energy saving Constant temperature heating Higher energy efficiency ratio, the highest COP can reach 3.9. Driven by electric energy, there is no emission and pollution, and it is green and environmentally friendly. Long service life, low maintenance cost
Four seasons, all-day, cyclic operation, all-weather operation throughout the year, not affected by bad weather such as night, cloudy, rain and snow. Provide comfortable hot water and stabilize the suitable temperature.
Automatic constant temperature adjustment, small temperature difference, intelligent calibration of constant water temperature, automatic water replenishment, and solve the problem of hot and cold water
Strive to be the best in terms of core components and manufacturing processes. It can be widely used in hotels, villas, holiday resorts, fitness, saunas, bathing centers, stadiums, schools, factories, breeding bases, etc., which need to provide a large amount of hot water. place
Precautions and common problems
It is recommended to be installed outdoors and well ventilated
1. The air source heat pump should be a base, because it will be frosted in winter, and water will flow out during the defrosting process and need to be drained.
If it must be installed in room air, it must be well ventilated, or have a larger space, and there must be heating for heat exchange
2. Special attention should be paid to:
The water flow must be fully matched, otherwise the water flow will be protected and the heat pump cannot be started. The return pipe should be as large as possible. For example, the heat pump has a pipe diameter of 1.5", and the inlet pipe is recommended to be 2" and bigger.
Some specification of 2020 New EVI Heat Pump Commercial Air to Water Heater 3kw Air To Water Source Mini Swimming Pool Heat Pump Water Heater
| . | KRY-8II | KRY-12II | KRY-24II | KRY-48II | KRY-96II | KRY-145II | KRY-220II |
| Rated heating capacity(A24/26oC) | 8kw | 12kw | 24kw | 48kw | 96kw | 145kw | 220kw |
| Rated power(kW) | 1.56 | 2.35 | 4.7 | 9.3 | 18.5 | 23.6 | 42.5 |
| COP | 5.1 | 5.1 | 5.1 | 5.16 | 5.41 | 6.14 | 5.17 |
| Rated heating capacityA20/26oC | 7.5kw | 11kw | 21kw | 44 kw | 90kw | 138kw | 208kw |
| Rated power(kW) | 1..5 | 2.3 | 4.5 | 8.6 | 17.5 | 24.1 | 41.5 |
| COP | 5 | 4.78 | 4.66 | 5.11 | 5.14 | 5.73 | 5 |
| Cooling Capacity(kW) | 3.8 | 5.7 | 11.3 | 23.7 | 40 | 58.1 | 98 |
| Consumed Power(kW) | 1.67 | 2.5 | 4.9 | 9.1 | 18.2 | 24.2 | 39 |
| EER | 2.3 | 2.3 | 2.3 | 2.6 | 2.2 | 2.4 | 2.5 |
| Rated voltage(Hz) | 220V 50HZ | 220V 50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ |
| Maximum input power(kW) | 2 | 3 | 6 | 12 | 24 | 36.5 | 61 |
| Maximum current(A) | 8 | 12 | 24 | 42 | 80 | 90 | 130 |
| Water flownWh | 2.3 | 3.5 | 7 | 13 | 32 | 41 | 62 |
| noise dB(A) | <50 | <50 | <65 | <68 | <69 | <71 | <73 |
| Anti-shock level | I | I | I | I | I | I | I |
| waterproof level | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 |
| Unit size (mm) | 910x350x835 | 1030x410x865 | 780x820x1700 | 1550x780x1700 | 1550x1550x1700 | 2360x1550x1840 | 2206x2020x2170 |
| Unit Weight(kg) | 65 | 95 | 260 | 380 | 760 | 2100 | 4005 |
