Features:
1. Both water heating & cooling, Min 8°C/ Max 40°C.Auto flow detect.
2. Applicable to swimming pool, SPA or fish cultivation.
3. Titanium heat exchanger in PVC shell , virtually impervious to water chemistry damage.
4. World famous Japanese brand compressor.
5. Small water temp difference only 1-5 deg c.
6. Insufficient water flow protection & high/low pressure protection.
7. Auto 4-way-valve defrost, ensure reliably running at cold ambient temp.
8 .Widely choose for heating capacity.
9. OEM design optional. Different color available. Stainless steel/Galvanized steel shell optional.
10.CE approved.
1. Constant pool water temperature;
2. Working air temperature: -10℃ to 45℃;
3. Max outlet water temperature: 45℃;
4. Absorb heat from the air with high COP (up to 5.03);
5. Automatic control of pool water temperature;
6. Guaranteed safety: water and electricity are isolated;
7. Save 65%-80% of the operating costs compared with other types of pool heaters.
With 3 automatic production line, 3 cold/hot condition enthalpy testing lab , fully refrigerant auto-refilling machine , as well as all necessary testing equipment, such as 4-in-1 electricity safety inspection machine and halogen leakage checking machine, etc. All management are executed by following ISO 9001:2008 system.
The heat pump products we have been manufacturing and supplying to Europe, South Africa and Asia are well accepted by the market and we have achieved more success by passing EN 14511, EN16147, EN14825 etc energy efficiency test , as well as our self developed IOT wifi control function that applicable in almost all of our air to water heat pump products.

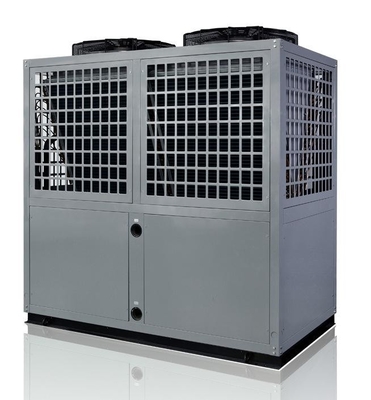

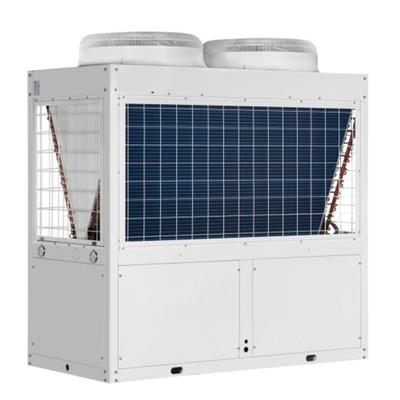

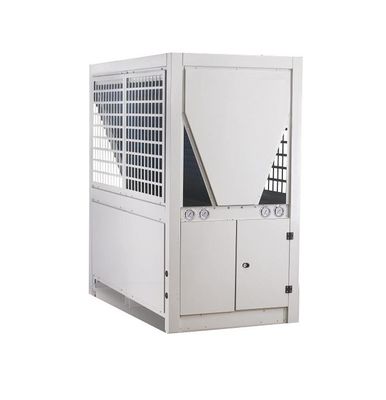

Some specification of R410A Apartment Air Source Heater Hot Water Air to Water DC Inverter Heat Pump 6~250KW Air Source Swimming Pool Heater
. | KRY-8II | KRY-12II | KRY-24II | KRY-48II | KRY-96II | KRY-145II | KRY-220II |
Rated heating capacity(A24/26oC) | 8kw | 12kw | 24kw | 48kw | 96kw | 145kw | 220kw |
Rated power(kW) | 1.56 | 2.35 | 4.7 | 9.3 | 18.5 | 23.6 | 42.5 |
COP | 5.1 | 5.1 | 5.1 | 5.16 | 5.41 | 6.14 | 5.17 |
Rated heating capacityA20/26oC | 7.5kw | 11kw | 21kw | 44 kw | 90kw | 138kw | 208kw |
Rated power(kW) | 1..5 | 2.3 | 4.5 | 8.6 | 17.5 | 24.1 | 41.5 |
COP | 5 | 4.78 | 4.66 | 5.11 | 5.14 | 5.73 | 5 |
Cooling Capacity(kW) | 3.8 | 5.7 | 11.3 | 23.7 | 40 | 58.1 | 98 |
Consumed Power(kW) | 1.67 | 2.5 | 4.9 | 9.1 | 18.2 | 24.2 | 39 |
EER | 2.3 | 2.3 | 2.3 | 2.6 | 2.2 | 2.4 | 2.5 |
Rated voltage(Hz) | 220V 50HZ | 220V 50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ |
Maximum input power(kW) | 2 | 3 | 6 | 12 | 24 | 36.5 | 61 |
Maximum current(A) | 8 | 12 | 24 | 42 | 80 | 90 | 130 |
Water flownWh | 2.3 | 3.5 | 7 | 13 | 32 | 41 | 62 |
noise dB(A) | <50 | <50 | <65 | <68 | <69 | <71 | <73 |
Anti-shock level | I | I | I | I | I | I | I |
waterproof level | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 |
Unit size (mm) | 910x350x835 | 1030x410x865 | 780x820x1700 | 1550x780x1700 | 1550x1550x1700 | 2360x1550x1840 | 2206x2020x2170 |
Unit Weight(kg) | 65 | 95 | 260 | 380 | 760 | 2100 | 4005 |
