220V 5.5KW Household Swimming Pool Air Source Heat Pump With Titanium Tube
1pc
MOQ
100$-10000$/pc
Price
220V 5.5KW Household Swimming Pool Air Source Heat Pump With Titanium Tube
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CB, ce, EMC, RoHS SABER
Model Number: KCHR-5I/BP Side wind
High Light:

Titanium Tube Air Source Heat Pump

,

5.5KW Air Source Heat Pump

Payment & Shipping Terms
Packaging Details: export packing
Payment Terms: L/C, T/T
Supply Ability: 50000units/year
Specifications
TelAmbient Air Temp: -30 To 43 Degree Celsius
Function: Heating, Cooling
Rated Power: 24 KW
Energy Efficiency Grade: One
Heating Type: Air Source Circulating Heat
Working Medium: R410A
Product Description
Strength of 220V 5.5KW household air source swimming pool water heater heat pump with Titanium tube

Features:

Products Description
1. Both water heating & cooling, Min 8°C/ Max 40°C.Auto flow detect.
2. Applicable to swimming pool, SPA or fish cultivation. Can be used for household & commercial.
3. Titanium heat exchanger in PVC shell , virtually impervious to water chemistry damage.

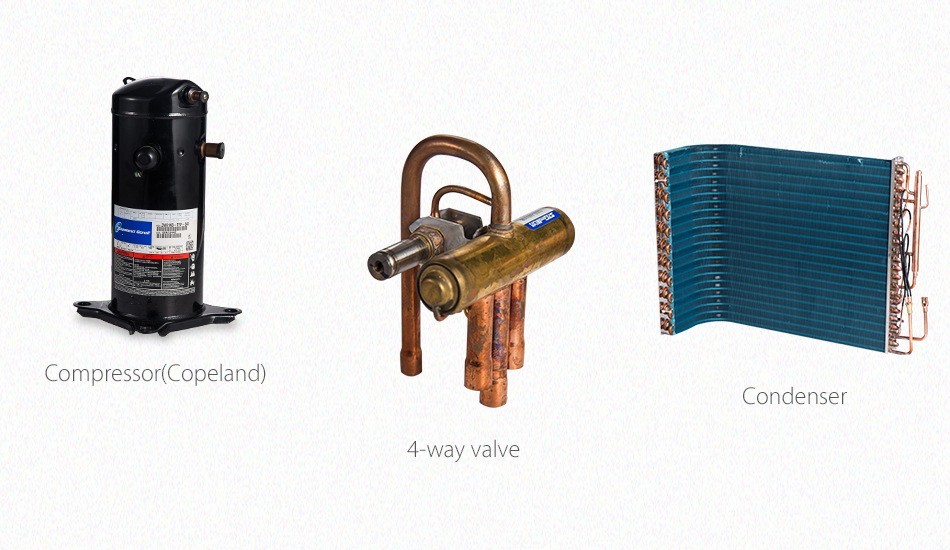

4. World famous Japanese brand compressor.
5. Small water temp difference only 1-5 deg c.
6. Insufficient water flow protection & high/low pressure protection.
7. Auto 4-way-valve defrost, ensure reliably running at cold ambient temp.
8 .Widely choose for heating capacity.
9. OEM design optional. Different color available.
10.CE approved.
Product Introduction
HEAT PUMP TYPE
R32 Full Dc Inverter Spa & Pool Heat Pump
MANUFACTURER
SICHUAN GREAT GPOOL
HEAT PUMP FUNCTION
Heating and Cooling
EFFICIENCY
COP 4.0 --17
SUITABLE HEATING SPACE
From 2square meter - 1250square meter pool heat pump
MOQ
5-10 Units (1-2 units are available with stocks)
SUITABLE MARKET
North America, South America, Western Europe, Middle East



With 3 automatic production line, 3 cold/hot condition enthalpy testing lab , fully refrigerant auto-refilling machine , as well as all necessary testing equipment, such as 4-in-1 electricity safety inspection machine and halogen leakage checking machine, etc. All management are executed by following ISO 9001:2008 system.



The heat pump products we have been manufacturing and supplying to Europe, South Africa and Asia are well accepted by the market and we have achieved more success by passing EN 14511, EN16147, EN14825 etc energy efficiency test , as well as our self developed IOT wifi control function that applicable in almost all of our air to water heat pump products.




Some specification of 220V 5.5KW household air source swimming pool water heater heat pump with Titanium tube


. KRY-8II KRY-12II KRY-24II KRY-48II KRY-96II KRY-145II KRY-220II
Rated heating capacity(A24/26oC) 8kw 12kw 24kw 48kw 96kw 145kw 220kw
Rated power(kW) 1.56 2.35 4.7 9.3 18.5 23.6 42.5
COP 5.1 5.1 5.1 5.16 5.41 6.14 5.17
Rated heating capacityA20/26oC 7.5kw 11kw 21kw 44 kw 90kw 138kw 208kw
Rated power(kW) 1..5 2.3 4.5 8.6 17.5 24.1 41.5
COP 5 4.78 4.66 5.11 5.14 5.73 5
Cooling Capacity(kW) 3.8 5.7 11.3 23.7 40 58.1 98
Consumed Power(kW) 1.67 2.5 4.9 9.1 18.2 24.2 39
EER 2.3 2.3 2.3 2.6 2.2 2.4 2.5
Rated voltage(Hz) 220V 50HZ 220V 50HZ 380V 3N-50HZ 380V 3N-50HZ 380V 3N-50HZ 380V 3N-50HZ 380V 3N-50HZ
Maximum input power(kW) 2 3 6 12 24 36.5 61
Maximum current(A) 8 12 24 42 80 90 130
Water flownWh 2.3 3.5 7 13 32 41 62
noise dB(A) <50 <50 <65 <68 <69 <71 <73
Anti-shock level I I I I I I I
waterproof level IPV4 IPV4 IPV4 IPV4 IPV4 IPV4 IPV4
Unit size (mm) 910x350x835 1030x410x865 780x820x1700 1550x780x1700 1550x1550x1700 2360x1550x1840 2206x2020x2170
Unit Weight(kg) 65 95 260 380 760 2100 4005

220V 5.5KW Household Swimming Pool Air Source Heat Pump With Titanium Tube 0
