Aluminum Fin Air To Water R744 CO₂ Heat Pump Commercial 40kw
Negotiable
MOQ
Negotiable
Price
Aluminum Fin Air To Water R744 CO₂ Heat Pump Commercial 40kw
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC ROHS
Model Number: SJKRS-8 II/C
High Light:

R744 CO₂ Heat Pump

,

Aluminum Fin CO₂ Heat Pump

,

40kw Air To Water Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Specifications
Referigeration: CO2 R744
Application:: Outdoor, Hotel, Commercial, Household
Compressor: Dorin
Controller: PLC Inverter Siemens
Max Hot Water Te: 70-90 C
Working Ambient Tem: -25C To 43C
Product Description

Strength of Commercial REVERE CO₂ R744 Air to Water Heat Pump 40kw



A carbon dioxide heat pump device equipped with a high-density phase change heat storage unit, including a carbon dioxide heat pump, the carbon dioxide heat pump water inlet pipe is connected to the first electric three-way valve, the bypass pipe of the first electric three-way valve is connected to the carbon dioxide heat pump water outlet pipe three-way, the carbon dioxide heat pump The water outlet pipe is connected to the second electric three-way valve after the three-way, the bypass pipe of the second electric three-way valve is connected to the water inlet pipe of the high-density phase change heat storage unit, and the water outlet pipe of the high-density phase change heat storage unit is connected to the heat pump outlet. On the water pipe three-way, the electric three-way valve is controlled by the control unit; the device of the utility model can use the high-density phase change heat storage unit, when the outdoor temperature is high, while supplying heat to the system and storing the excess heat generated by the heat pump; When the outdoor temperature is very low, the heat pump is turned off and the stored heat is released for the system to use, and the electric auxiliary heating system is cancelled accordingly. Through the control of the control unit, the working performance coefficient of the carbon dioxide heat pump is maximized and the system power configuration capacity is reduced.
Microwave drying and sterilization equipment for carbon dioxide heat pump enthalpy increase, including wetting system, material conveying system, microwave drying and sterilizing system, carbon dioxide heat pump enthalpy increasing system and gas purification system, the wetting system is used to wet the material to be treated and convey the material The system is used to transport the materials to be processed into the microwave drying and sterilizing system to be dried and sterilized by microwaves and then discharged. The moist and hot gas generated during the drying and sterilization process is cooled and dehumidified by the carbon dioxide heat pump enthalpy increasing system, and then emptied after being purified by the gas purification system. , the heat generated by the microwave generator is cooled by the carbon dioxide heat pump enthalpy increase system, and the carbon dioxide heat pump enthalpy increase system recovers the heat generated by the microwave generator and the heat of the wet and hot exhaust gas to preheat the spray water and the materials to be treated. The equipment has high drying and sterilization efficiency and good effect, utilizes the enthalpy increasing system to realize the cascade utilization of waste heat and the recycling of water resources, has low operation cost and no environmental pollution.





Commercial REVERE CO₂ R744 Air to Water Heat Pump 40kw





Unit type SJKRS-28 II/C SJKRS-36II/C SJKRS-55 II/C SJKRS-73 I/C SJKRS-106 IC SJKRS-I60II /C
Specifications 7.5HP 10HP 15HP 20HP 30HP 40HP
Power supply Three-phase five-wire380V/50Hz
Heating mode Direct heat/cycle type
Standard working condition Heating capacity( kw ) 27.5 36.7 55.1 72.8 10.6.5 155.1
Input Power(kW) 6.1 8.2 13.7 16.1 23.6 34.5
COP 4.5 4.5 4.5 4.5 4.5 4.5
Hot Water flow(m³/h) 0.59 0.79 1.18 1.56 2.29 3.33
High temperature condition Heating capacity kw ) 23.9 28.5 51.5 59.5 89 13.1.5
Input Power(kW) 7.5 8.9 16.1 18.6 27.8 41.1
COP 3.2 3.2 3.2 3.2 3.2 3.2
Hot Water flow(m³/h) 0.27 0.33 0.59 0.68 1.02 1.51
Low temperature condition Heating capacity( kw ) 17.3 21.4 34.8 41.5 62.2 94.5
Input Power(kW) 6.2 7.6 12.4 14.8 22.2 33.8
COP 2.8 2.8 2.8 2.8 2.8 2.8
Hot Water flow(m³/h) 0.32 0.4 0.65 0.78 1.16 1.77
Component Information Size of water pipe joint DN20 DN25 DN32 DN40
Water heat exchanger Plate or sleeve heat exchanger
Air Heat Exchanger Aluminum Fin for copper tube
compressor type Semi-closed reciprocating
Operation Panel Color touch screen
Maximum outlet temperature(℃) 90℃
Refrigerants R744 (CO2 )
Design pressure(MPa) High side 15, low side 8
Dimensions (length, width and height mm) 1450x950x1450 1600x950x1500 1850x1150x1900 2050x1150x1950 2670x1410x2150 2290x2270x1980
Noise (dB) 56 59 62 67 70 70
Weight(kg) 550 660 780 860 1180 221360
SCOPE of use Feed water temperature(℃) 5~ 40
Feed water pressure 0.05~ 0.4
Effluent temperature(℃) 55~ 90
Maximum flow 1.2 1.5 2.4 3.2 4.9 6.5
Ambient temperature(℃) ’-20~43

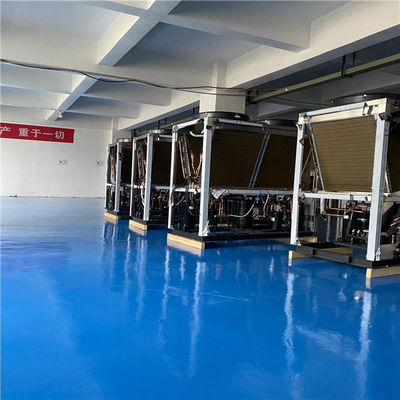

Aluminum Fin Air To Water R744 CO₂ Heat Pump Commercial 40kw 0

Aluminum Fin Air To Water R744 CO₂ Heat Pump Commercial 40kw 1
