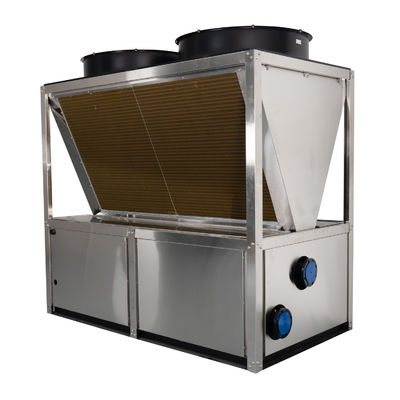

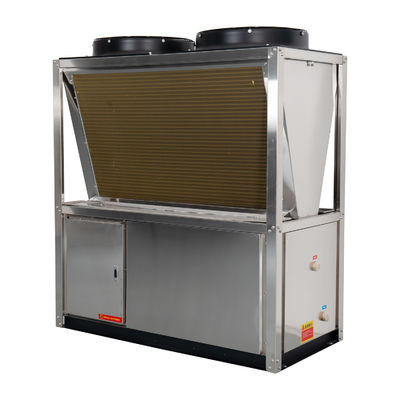

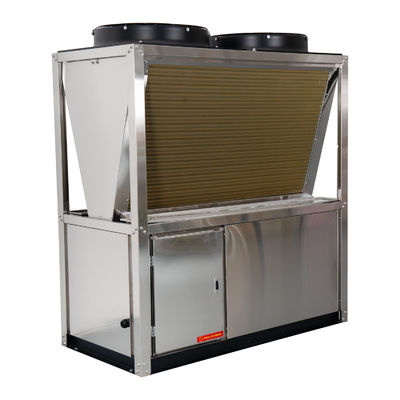

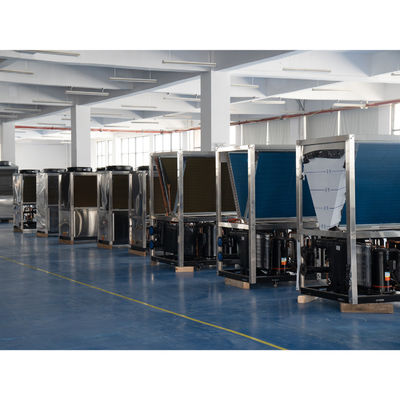

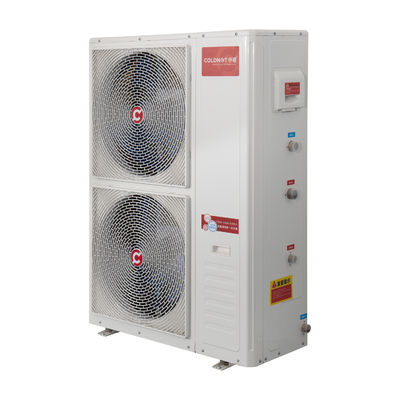

Stainless steel sheet metal 120 degree steam high-temperature air source heat pump R410 refrigeration
The basic operating principle of the cascaded high temperature air source heat pump unit is based on the reverse
Carnot cycle principle. The working fluid system is divided into a low temperature level circulation system and
a high temperature level circulation system. The low-pressure gas is compressed into a medium-temperature and
medium-pressure gas by the low-temperature stage compressor, and enters the intermediate heat exchanger to
condense into a liquid state to release heat. The liquid working medium is decompressed and expanded by the
expansion valve and then returns to the fin In the heat exchanger, the evaporation heat is absorbed again to
complete a low temperature cycle; at the same time, the liquid working medium of the high temperature machine
absorbs the heat transmitted by the low temperature stage in the intermediate heat exchanger and evaporates
into a medium temperature and low pressure gas, and the low pressure gas is compressed by the low pressure
stage compressor. The medium-temperature and medium-pressure gas is compressed into a high-temperature and
high-pressure gas by a high-temperature compressor, which is condensed into a liquid state in a heat exchanger
to release heat to produce high-temperature hot water. In the intermediate heat exchanger, the evaporation heat
is absorbed again to complete a low temperature cycle; through the reciprocating cycle, the effect of producing
high temperature hot water at a low temperature ambient temperature is achieved
Stainless steel sheet metal 120 degree steam high-temperature air source heat pump R410 refrigeration
| type |
FKH-20II/TGW |
FKH-50II/TGW |
FKH-100II/TGW |
| Top out wind |
Top out wind |
Top out wind |
| Power specifications |
380V 3N～50Hz |
380V 3N~50Hz |
380V 3N～50Hz |
Heating capacity under A1 operating
condition(20) |
20kW |
50kW |
100kW |
Heating consumption power under A1 working
condition |
12kW |
29kW |
58kW |
Heating capacity under A2 working
condition(7) |
19kW |
49kW |
98kW |
Heating consumption power under A2
working condition |
12kW |
31kW |
62kW |
Heating capacity under A3working condition(
-12) |
15kW |
42kW |
85kW |
Heating consumption power under A3
working condition |
11.5kW |
32kW |
63kW |
| Heating capacity under A4working condition(-20) |
14kW |
37kW |
75kW |
Heating consumption power under A4
working condition |
11.2kW |
30kW |
60kW |
| Maximum operating current |
36A |
70A |
140A |
| discharge |
3.4m³/h |
8.6m³/h≤ |
17.2m³/h |
| noise |
≤58dB(A) |
60dB(A) |
≤72dB(A) |
| Water side pressure loss |
≤75kPa |
≤75kPa |
≤88kPa |
| Unit size(length xwidth x height mm) |
860×780×1780 |
1550×780×1780 |
2260×1230×2170 |

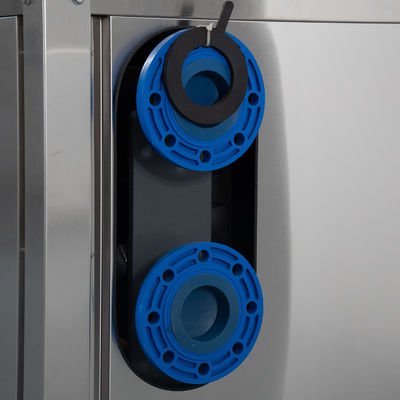

| CONNECT SIZE |
DN32(hexagon nipples) |
DN40(hexagon nipples) |
DN80(flange) |
| Unit weight(kg) |
240 |
450 |
1350 |
