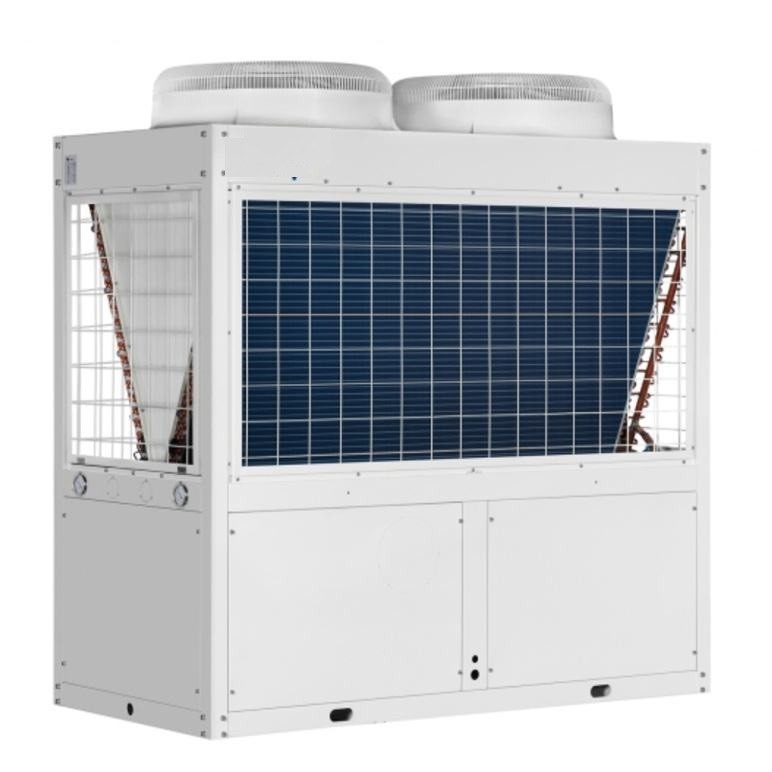

High-Efficiency Dual-Circuit Air Source Heat Pump
Efficient and energy-saving:
In extremely cold environments, compared to traditional low-temperature air source heat pumps, its overall heating capacity attenuation is smaller and its energy efficiency is higher. The comprehensive energy attenuation rate shall not exceed 10%, and the lower the ambient temperature, the higher the heating water temperature, meeting the thermal matching requirements of the end pipeline.
Stable and reliable:
Adopting two-stage compression technology, the dual compressors operate alternately to ensure stable operating pressure and avoid overload. Equipped with multiple self checking and protection functions such as compressor exhaust temperature protection and system high and low pressure protection, ensuring the safe operation of the system.
Long lifespan and low maintenance:
The equipment has a lifespan of 10-15 years, strong durability, and low maintenance costs. Designed with stainless steel sheet metal, it is heat-resistant, corrosion-resistant, and not easily deformed.
Intelligent and convenient:
Equipped with 5G cloud technology, it supports remote monitoring, fault diagnosis, and online maintenance to improve service efficiency. Intelligent zone defrosting reduces the impact of defrosting on heating efficiency and ensures more stable water temperature.
| Type | FKH-80II/GW |
| Top out wind | |
| Power specifications | 380V3N~50Hz |
| Heating capacity under A1 operating condition(20) |
80kW |
| Heating consumption power under A1 working condition |
32kW |
| Heating capacity under A2 working condition(7) |
76kW |
| Heating consumption power under A2 working condition |
34.5KW |
| Heating capacity under A3 working cond ition (-12) |
65kW |
| Heating consumption power under A3 working condition |
37.5kW |
| Heating capacity under A4working condition(-20) |
58kW |
| Heating consumption power under A4 working condition |
36kW |
| Maximum operating current | 120A |
| Discharge | 13.8m³/h |
| Noise | ≤65dB(A) |
| Water side pressure loss | ≤85kPa |
| Unit size (ength x width x height mm) | 2260×1030×2170 |
| CONNECT SIZE | DN50(flange) |
| Unit weight (kg) | 750 |
1.Swimming Pool Heating:
In home or public swimming pools, using a high-temperature heat pump can maintain a constant water temperature and provide a comfortable swimming environment. Compared to traditional electric or gas heating methods, high-temperature heat pumps are more energy-efficient and environmentally friendly.
2.Hot Spring Resort:
Hot spring resorts need to continuously provide high-temperature hot water to meet the needs of tourists. High temperature heat pumps can stably generate high-temperature hot water and have low operating costs, making them an ideal choice for hot spring resorts.
3.Hot water supply for schools and hospitals:
Public places such as schools and hospitals require a large amount of hot water supply for bathing, washing, and other purposes. High temperature heat pumps can efficiently provide the required hot water and operate stably and reliably, reducing maintenance costs.
4.Agricultural greenhouse heating:
In agricultural greenhouses, heating equipment is required to maintain a suitable temperature to promote plant growth. High temperature heat pumps can serve as an environmentally friendly and efficient heating method, providing a stable heat source for greenhouses.
