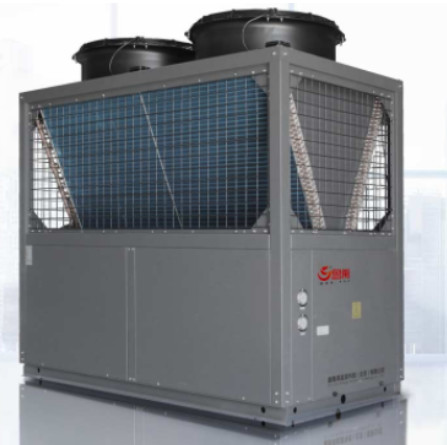

220KW High Temperature Industrial Air Source Heat Pump for SPA
Applicable: villas, hotels, families, shopping malls, office buildings, exhibition halls, restaurants, factories and other places.
Features:
Higher flexibility and practicability
This 220KW High Temperature Industrial Air Source Heat Pump for SPA includes a sheet metal shell and a compressor, a heat exchanger and a fan arranged in the sheet metal shell. The swimming pool heat pump hot water device also includes two telescopic roller devices, which are symmetrical Are arranged on two opposite side walls of the sheet metal shell; the telescopic roller device includes a roller mechanism, a driving mechanism, and a guide mechanism. The driving mechanism is fixedly mounted on the side wall of the sheet metal shell, and the guide mechanism Installed on the side wall of the sheet metal shell, the driving mechanism is connected with the roller mechanism, and the roller mechanism is connected with the guide mechanism. The beneficial effect of the present invention lies in: the swimming pool heat pump hot water of the present invention When the equipment needs to be moved, it can be moved through a retractable roller device. When a fixed setting is required, the roller device can be stowed to prevent accidental movement of the device, which has higher flexibility and practicability
Effectively improve the heat dissipation effect and prolong the service life of the variable frequency drive board.
The heat dissipation structure of the swimming pool heat pump variable frequency drive board includes the air baffle and electrical box components. The air baffle is installed in the box of the swimming pool heat pump to separate the box of the swimming pool heat pump into a fan cavity and a compressor cavity; electrical box components are installed On the upper end of the air baffle, and at least partly in the fan cavity
Leomon heat pumps strength for 220KW High Temperature Industrial Air Source Heat Pump for SPA
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 120 invention patents, more than 350 other patents, and participated in the preparation of 25 national standards.
Our strong and professional technical and marketing team ready to make best service!
Pre order(Inquiry progress):
Check with customer about usage, request specifications, enviroment and other request
Make details proposal/offer to customer
Order Processing
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and stability.
During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers
After sale service
2 years warranty
Feedback and solution will be provided within 1 working day
Free technical support!
220KW High Temperature Industrial Air Source Heat Pump for SPA
| Spec. | KRY-220II |
| Rated heating capacity(A24/26oC) | 220kw |
| Rated power(kW) | 42.5 |
| COP | 5.17 |
| Rated heating capacityA20/26oC | 208kw |
| Rated power(kW) | 41.5 |
| COP | 5 |
| Cooling Capacity(kW) | 98 |
| Consumed Power(kW) | 39 |
| EER | 2.5 |
| Rated voltage(Hz) | 380V 3N-50HZ |
| Maximum input power(kW) | 61 |
| Maximum current(A) | 130 |
| Water flownWh | 62 |
| noise dB(A) | <73 |
| Anti-shock level | I |
| waterproof level | IPV4 |
| Unit size (mm) | 2206x2020x2170 |
| Unit Weight(kg) | 4005 |
