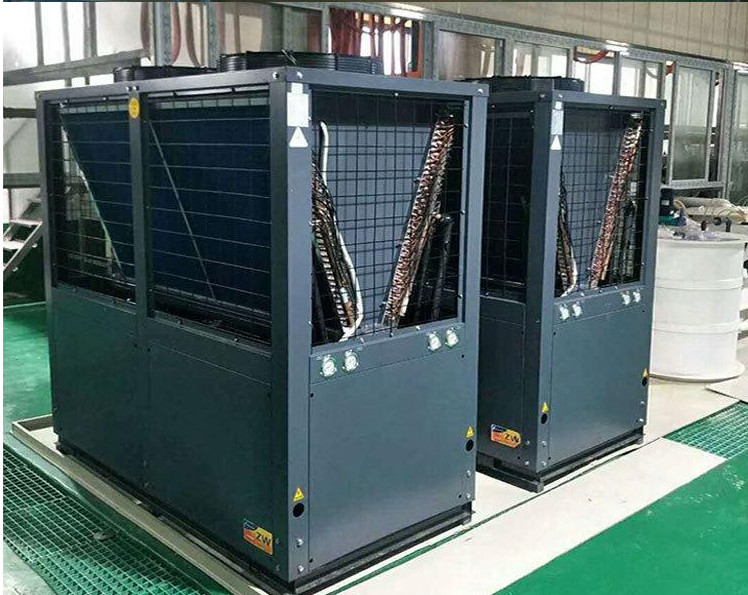

Commercial Usage Air To Water Heat Pump Spa Heater
Our Swimming pool heat pump applies titanium coil exchanger and heat pump technology which can move heat from surrounding to the pool water, we use of R407C refrigerant makes the unit in perfect performance and more eco-friendly
Top spares:
Description:
1. Heating for swimming pool, Spa pool, Sauna, etc.
2. Working condition range: -30℃ to 43℃
3. Max outlet water temperature: 45℃
4. Anti-corrosion, with titanium tube water heat exchanger
5. Copeland or Sanyo scroll compressor
Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 12 invention patents, more than 50 other patents, and participated in the preparation of 25 national standards.
Gold - aluminum condensation process rapid frost
Adopts American gold-aluminum finned evaporator technology and unique precious metal coating, which can effectively improve the evaporation efficiency of air and rain water according to the operation condition of air energy in special environment. -25℃ can also be highly effective for heating.
Leader member for editting air source heat pumps standards, top manufacture of various heat pumps for swimming pool, spas, schools, hotels, etc
Strong and professional technical and commercial support!
Commercial Usage Air To Water Heat Pump Spa Heater
| Spec. | DKFXRS-19II/R | DKFXRS-38II/R | DKFXRS-95II/R | DKFXRS-190II/R |
| Nominal heating capacity at room temperature(kW) | 18.6 | 38.8 | 90 | 190 |
| Nominal heating at room temperature(kW) | 4.5 | 8.8 | 19.5 | 43 |
| Low-temperature nominal heating capacity(kW) |
8.6 | 17.7 | 42 | 84 |
| Low temperature nominal heating(kW) | 3.7 | 7.35 | 16.3 | 32.6 |
| Maximum input power(kW) | 8.3 | 17 | 40 | 80 |
| Maximum current(A) | 15 | 30 | 88 | 176 |
| Power Specifications(Hz) | 380V3N ~ 50 | 380V3N ~ 50 | 380V 3N ~ 50 | 380V 3N ~ 50 |
| Refrigerant/charge amount | R22/6500g | R22/6700gx2 | R410A/8500gX2 | R410A/8500gX4 |
| noisedb(A) | <66 | <68 | <78 | <81 |
| Water resistancekPa | <100 | <100 | <100 | <123 |
| Anti-shock level | I | |||
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
| Caliber of inlet and outlet |
DN32 | DN40 | DN50 | DN75 |
| Unit size (mm) | 780x820x1700 | 1550x780x1700 | 2206x1030x2170 | 2206x2020x2170 |
| Unit Weight(kg) | 263 | 431 | 750 | 1200 |
Swimming pools, spas, restaurants, hotels, schools, household, wherever need heating, cooling or hot water
Some of our projects
Welcome to contact for further details!
