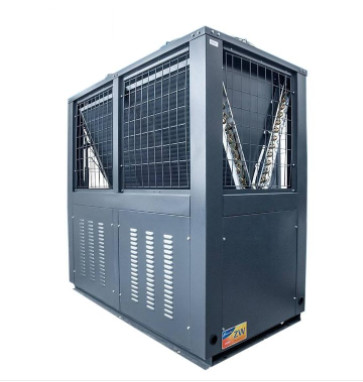

Features of 30HP 106.5 KW Split Heat Pump For Big Hot Water Requirement
The split heat pump shower room made of this heat pump includes a waste water recovery base, a shower room body arranged above the waste water recovery base, a hot water tank arranged outside the shower room body, and a heat pump system. The heat pump system includes a waste water recovery base. The heat pump evaporator in the recovery base, the heat pump condenser arranged in the hot water tank, the compressor connected to the condenser and the heat pump evaporator, the refrigerant throttling device connected to the heat pump evaporator, and the refrigerant throttling The refrigerant filter connected to the device is connected with the heat pump condenser; the compressor is installed on the outside of the shower room body, which reflects the high safety of the utility model.
For further specification of Inverter 30HP 106.5 KW Split Heat Pump For Big Hot Water Requirement Use and other specifications, welcome to contact us!
Unit type | SJKRS-106 IC | |
Specifications | 30HP | |
Power supply | Three-phase five-wire380V/50Hz | |
Heating mode | Direct heat/cycle type | |
Standard working condition | Heating capacity( kw ) | 106.5 |
Input Power(kW) | 23.6 | |
COP | 4.5 | |
Hot Water flow(m³/h) | 2.29 | |
High temperature condition | Heating capacity kw ) | 89 |
Input Power(kW) | 27.8 | |
COP | 3.2 | |
Hot Water flow(m³/h) | 1.02 | |
Low temperature condition | Heating capacity( kw ) | 62.2 |
Input Power(kW) | 22.2 | |
COP | 2.8 | |
Hot Water flow(m³/h) | 1.16 | |
Component Information | Size of water pipe joint | DN32 |
Water heat exchanger | Plate or sleeve heat exchanger | |
Air Heat Exchanger | Aluminum Fin for copper tube | |
compressor type | Semi-closed reciprocating | |
Operation Panel | Color touch screen | |
Maximum outlet temperature(℃) | 90℃ | |
Refrigerants | R744 (CO2 ) | |
Design pressure(MPa) | High side 15, low side 8 | |
Dimensions (length, width and height mm) | 2670x1410x2150 | |
Noise (dB) | 70 | |
Weight(kg) | 1180 | |
SCOPE of use | Feed water temperature(℃) | 5~ 40 |
Feed water pressure | 0.05~ 0.4 | |
Effluent temperature(℃) | 55~ 90 | |
Maximum flow | 4.9 | |
Ambient temperature(℃) | ’-20~43 |
3) low temperature working condition: ambient temperature DB-10 °C, using side initial water temperature 9 °C, termination water temperature 55 °c;2) high temperature effluent: Ambient Temperature DB 20 ° c/WB 15 ° C, using side initial water temperature 15 ° C, termination water temperature 90 ° c;
1) standard working conditions: ambient temperature DB 20 ° c/WB 15 ° C, using side initial water temperature 15 ° C, termination water temperature 55 ° c;
