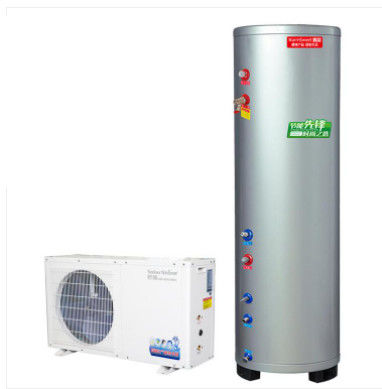

Features of High Efficiency Air Source Heat Pump Water Heater for Swimming Pool / SPA
Main features
isolating external heat and dissipating internal heat
A swimming pool heat pump water heater includes a base and a body. The body is composed of an outer shell and an inner shell. The front of the outer shell is provided with a central control screen and an opening and closing door. The top of the body is provided with a top plate. The shell is arranged inside the shell. The utility model provides a swimming pool heat pump water heater, which adopts an inner and outer double shell design. By setting a deflector, the evaporator is fully contacted with the airflow entering through an air inlet pipe, and a fan, a through pipe and a control valve are set to change the evaporator. The hot cold air flow is filled between the inner shell and the outer shell, and can enter between the upper and lower partitions through the air inlet to form the inside of the cavity. The one-way air outlet valve is set to make the hot air formed by the heating of the electrical equipment in the cavity pass through The one-way air outlet valve flows into the fan and exhausts the inside of the heater, so that when the pool heat pump water heater is placed outdoors for operation, the heater has the effect of isolating external heat and dissipating internal heat.
High efficiency and energy saving
It consumes a small amount of electricity and obtains a large amount of free heat from the air for heating. More than 50% energy saving than electric water heater.
Safety and environmental protection
No combustion, no waste gas, carbon monoxide and other harmful gas emissions; Complete separation of water and electricity to prevent leakage accidents.
All-weather use
No solar water heater in rainy weather system insufficient phenomenon, with electricity and air can be 24 hours of continuous heating
Long service life
Air source heat pump and air conditioning working principle is similar, the service life can reach more than 10 years.
Multi-purpose use
Provide us with hot water, heating, air conditioning, the effect is very ideal.
Comfortable enjoy
Water production temperature of 55 degrees, constant water temperature, will not appear sometimes hot and sometimes cold; Super large water output, multi-point water supply at the same time.
Company brief introduction
Over 20 years production experience, thanks to R&D hard and smart working, company is authorized over 400 patents, products quality play a lead role in HVAC system field
Leomon heat pump is also leader member for editting swimming pool air source heat pumps stadnard, leader for HVAC system and heating projects
Already service for many projects such as spa, villa, tourisa spots,, hotels, hospitals, restarant, beauty care, etc
Our strong and professional technical and marketing team ready to make best service!
Technical paremeters of 145 kw Over - Temperature Direct Heat Water Heater for Commercial and Industrial School Beauty SPA
| Spec. | KRY-145II |
| Rated heating capacity(A24/26oC) | 145kw |
| Rated power(kW) | 23.6 |
| COP | 6.14 |
| Rated heating capacityA20/26oC | 138kw |
| Rated power(kW) | 24.1 |
| COP | 5.73 |
| Cooling Capacity(kW) | 58.1 |
| Consumed Power(kW) | 24.2 |
| EER | 2.4 |
| Rated voltage(Hz) | 380V 3N-50HZ |
| Maximum input power(kW) | 36.5 |
| Maximum current(A) | 90 |
| Water flownWh | 41 |
| noise dB(A) | <71 |
| Anti-shock level | I |
| waterproof level | IPV4 |
| Unit size (mm) | 2360x1550x1840 |
| Unit Weight(kg) | 2100 |
The nominal working conditions at room temperature are: ambient dry bulb 20°C, ambient wet bulb 15°C, initial water temperature 15°C, and ending water temperature 55. (2; The nominal low temperature conditions are: ambient dry bulb 72, ambient wet bulb 61, initial water temperature 15°C, and ending water temperature 55.
